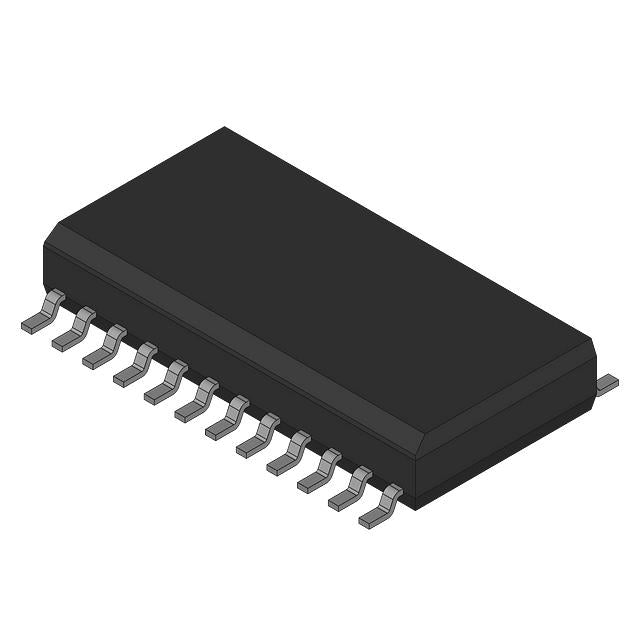

TLC5948PWPR TI LED Driver | 16-Channel, Constant Current, PWM Dimming

Product Overview

The TLC5948PWPR from Texas Instruments is a 16-channel constant-current sink LED driver designed for high-performance display and lighting applications. It integrates a 16-bit shift register, data latches, and constant-current output drivers. Each channel can be individually adjusted via a serial interface, with output current up to 50 mA per channel. The device supports PWM dimming for precise brightness control and features thermal shutdown for protection. Operating from 3.0V to 5.5V, it is ideal for automotive, industrial, and consumer electronics.

Detailed Technical Specifications

Key Features

• 16 constant-current sink outputs
• Adjustable output current via external resistor
• Individual channel brightness control via PWM
• 3-wire serial interface (SDI, CLK, LAT)
• Thermal shutdown and open-LED detection
• Low power consumption
• Wide operating temperature range

Target Applications

• Automotive dashboard displays and interior lighting
• 5G base station status indicators
• Industrial control panel LEDs
• LED signage and matrix displays
• Consumer electronics (TV, monitor backlighting)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TLC5948PWPR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
