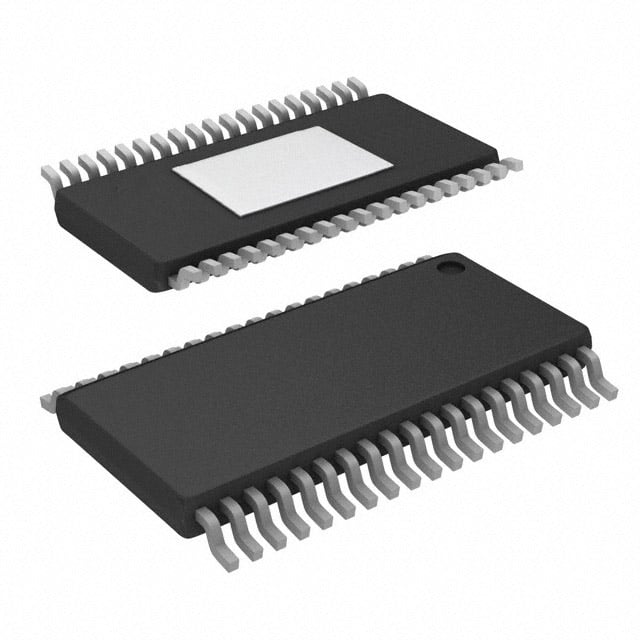

TLC5951DAP TI LED Driver | 38-HTSSOP | 16-Channel, Constant Current

Product Overview

The TLC5951DAP from Texas Instruments is a 16-channel constant-current sink LED driver designed for high-performance display and lighting applications. It integrates a shift register, data latch, and current control circuitry to provide precise LED brightness control. The device operates from a supply voltage of 3.0V to 5.5V and supports a maximum output current of 120 mA per channel, configurable via an external resistor. With a 30 MHz data transfer rate and 16-bit grayscale PWM control, it enables smooth and flicker-free dimming. The 38-pin HTSSOP package ensures compact design and efficient thermal dissipation.

Detailed Technical Specifications

Key Features

• 16 constant-current sink outputs
• Adjustable output current via external resistor
• 16-bit PWM grayscale control for smooth dimming
• 30 MHz serial data interface for high-speed updates
• Built-in LED open/short detection
• Thermal shutdown protection
• Low power consumption in shutdown mode

Target Applications

• LED video displays (e.g., indoor/outdoor billboards, stadium screens)
• Automotive lighting (e.g., dashboard backlighting, ambient lighting)
• Industrial control panels (e.g., PLC indicator lights)
• 5G base station status indicators
• Smart home lighting systems

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TLC5951DAP. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
