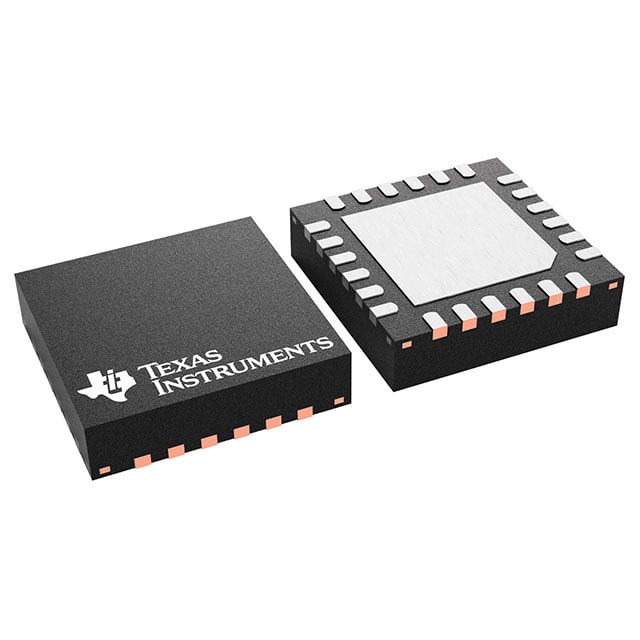

TLC5971RGER TI LED Driver | 24-VQFN (4x4) | 12-Ch, 16-bit PWM, 3.0-5.5V

Product Overview

The TLC5971RGER is a 12-channel, constant-current sink LED driver from Texas Instruments, designed for high-precision lighting applications. It features a 16-bit (65,536 levels) PWM grayscale control for each channel, enabling smooth and accurate brightness adjustments. The device operates from a supply voltage of 3.0V to 5.5V and provides a constant current range of 0.5mA to 35mA per channel, set via an external resistor. The TLC5971RGER is housed in a compact 24-pin VQFN (4x4mm) package, making it suitable for space-constrained designs. It supports a serial interface (SDI, SCLK) for data input and can be cascaded for multiple device control. The device also includes thermal shutdown and error detection features for reliable operation.

Detailed Technical Specifications

Key Features

• 12 constant-current sink channels with 16-bit PWM grayscale control
• Adjustable constant current from 0.5 mA to 35 mA per channel
• Wide supply voltage range: 3.0 V to 5.5 V
• Serial interface with daisy-chain capability for multiple devices
• Built-in thermal shutdown and LED error detection (open/short)
• Compact 24-VQFN (4x4 mm) package for space-saving designs
• Low power consumption and high efficiency

Target Applications

• 5G base station status indicators and backlighting
• Automotive dashboard and infotainment display backlighting
• Industrial control panel LED indicators
• Smart home lighting systems (e.g., RGB LED strips)
• Portable electronics (e.g., smartphone notification LEDs)
• LED signage and video walls

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TLC5971RGER. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TLC5971RGER 是德州儀器（TI）推出的一款12通道恆流沉入式LED驅動器，專為高精度照明應用設計。每個通道均支援16位元（65,536級）PWM灰度控制，實現平滑精確的亮度調節。器件工作電壓範圍為3.0V至5.5V，每通道恆流範圍為0.5mA至35mA，通過外部電阻設定。TLC5971RGER 採用緊湊的24引腳VQFN（4x4mm）封裝，適合空間受限的設計。支援串列介面（SDI、SCLK）進行數據輸入，並可級聯多個器件。器件還包括熱關斷和錯誤檢測功能，確保可靠運行。

詳細技術參數

核心特性

• 12路恆流沉入通道，16位元PWM灰度控制
• 每通道可調恆流範圍0.5 mA至35 mA
• 寬電源電壓範圍：3.0 V至5.5 V
• 串列介面，支援菊花鏈級聯多個器件
• 內建熱關斷和LED錯誤檢測（開路/短路）
• 緊湊的24-VQFN（4x4 mm）封裝，節省空間
• 低功耗，高效率

典型應用場景

• 5G基站狀態指示燈和背光
• 汽車儀表盤和資訊娛樂顯示器背光
• 工業控制面板LED指示燈
• 智能家居照明系統（如RGB LED燈帶）
• 可攜式電子設備（如手機通知LED）
• LED標誌和視頻牆

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TLC5971RGER 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
