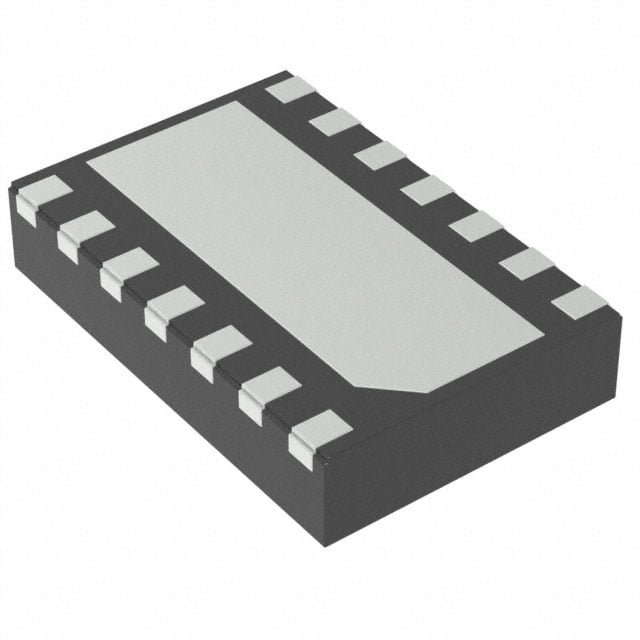

TLIN2022DMTTQ1 TI LIN Transceiver | 14-VSON (4.5x3) | 2Mbps, 58V Bus Fault

Product Overview

The TLIN2022DMTTQ1 is a local interconnect network (LIN) transceiver designed by Texas Instruments, compliant with LIN 2.2, SAE J2602, and ISO 17987-4 standards. It operates as a bus transceiver between a LIN protocol controller and the physical bus, supporting data rates up to 2 Mbps for high-speed LIN applications. The device is housed in a compact 14-VSON (4.5x3) package, ideal for space-constrained automotive and industrial designs. With a wide supply voltage range of 5.5V to 28V and robust fault protection up to 58V, it ensures reliable communication in harsh environments.

Detailed Technical Specifications

Key Features

• High-speed LIN transceiver supporting up to 2 Mbps
• Wide supply voltage range: 5.5V to 28V
• Bus fault protection up to ±58V
• Ultra-low standby current: 1.5 µA typical
• Integrated 3.3V/5V regulator for LIN slave nodes
• Dominant state timeout and bus stuck dominant detection
• Thermal shutdown protection
• AEC-Q100 qualified for automotive applications

Target Applications

• Automotive body control modules (e.g., door modules, seat control, sunroof)
• 5G base station remote monitoring units
• Industrial sensor networks (e.g., temperature, pressure sensors)
• Dashboard and infotainment systems
• Battery management systems (BMS) for electric vehicles
• LED lighting control modules
