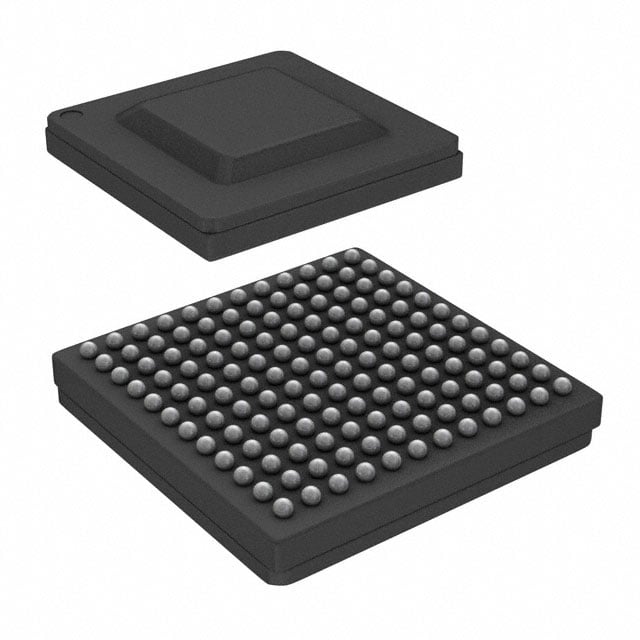

TLK10232CTR TI Dual-Channel 10Gbps Transceiver | 144-FCBGA (13X13) | 0.11W/Ch

Product Overview

The TLK10232CTR is a high-performance dual-channel transceiver from Texas Instruments, designed for multi-rate data transmission up to 10.3125 Gbps per channel. Housed in a compact 144-ball Fine-Pitch Ball Grid Array (FCBGA) package measuring 13x13 mm, it integrates advanced equalization and clock recovery to support backplane, optical module, and cable interconnect applications. With ultra-low power consumption of 0.11 W per channel, it is ideal for power-sensitive systems.

Detailed Technical Specifications

Key Features

• Dual-channel transceiver supporting 1G to 10G Ethernet, CPRI, and OBSAI standards
• Low power dissipation: 0.11 W per channel typical
• Integrated adaptive equalization (CTLE + 1-tap DFE) for extended reach
• Built-in clock and data recovery (CDR) with low jitter
• Programmable output swing and pre-emphasis
• Supports SFP+ and SFP28 direct attach cable interfaces
• Small footprint 13x13 mm FCBGA package

Target Applications

• 5G base station fronthaul/backhaul (e.g., Nokia AirScale, Ericsson Radio System)
• Data center switches and routers (e.g., Cisco Nexus 9000, Arista 7280R)
• Optical transceiver modules (e.g., SFP+, SFP28, QSFP+ active cables)
• High-speed backplane interconnects for telecom equipment
• Test and measurement equipment (e.g., oscilloscope front-end)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TLK10232CTR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TLK10232CTR 是德州儀器（TI）推出的一款高性能雙通道收發器，支援每通道高達 10.3125 Gbps 的多速率數據傳輸。它採用緊湊的 144 球細間距球柵陣列（FCBGA）封裝，尺寸為 13x13 mm，集成了先進的均衡和時鐘恢復功能，適用於背板、光模塊和電纜互連應用。每通道典型功耗僅 0.11 W，非常適合功耗敏感的系統。

詳細技術參數

核心特性

• 雙通道收發器，支援 1G 至 10G 以太網、CPRI 和 OBSAI 標準
• 低功耗：每通道典型值 0.11 W
• 集成自適應均衡（CTLE + 1-tap DFE），延長傳輸距離
• 內建時鐘與數據恢復（CDR），低抖動
• 可編程輸出擺幅和預加重
• 支援 SFP+ 和 SFP28 直接連接電纜接口
• 小巧的 13x13 mm FCBGA 封裝

典型應用場景

• 5G 基站前傳/回傳（例如 Nokia AirScale、Ericsson Radio System）
• 數據中心交換機和路由器（例如 Cisco Nexus 9000、Arista 7280R）
• 光收發模塊（例如 SFP+、SFP28、QSFP+ 有源電纜）
• 電信設備的高速背板互連
• 測試與測量設備（例如示波器前端）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TLK10232CTR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
