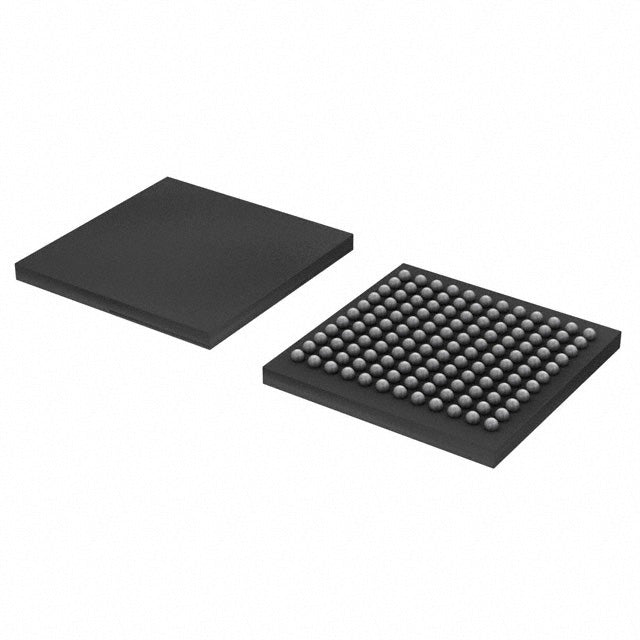

TLK3131ZWQ TI Transceiver | 144-PBGA (13x13) | 0.6-2.5Gbps, 1.8V/2.5V

Product Overview

The TLK3131ZWQ is a high-performance multi-rate transceiver from Texas Instruments, designed for bidirectional point-to-point data transmission over high-speed serial links. It supports data rates from 0.6 Gbps to 2.5 Gbps, making it ideal for a wide range of communication applications. The device integrates clock and data recovery (CDR), serializers/deserializers (SerDes), and differential line drivers/receivers in a compact 144-ball PBGA package (13x13 mm). Operating from a 1.8V or 2.5V supply, it offers low power consumption and excellent signal integrity.

Detailed Technical Specifications

Key Features

• Multi-rate operation from 0.6 to 2.5 Gbps with automatic rate detection
• Integrated CDR with low jitter and fast lock time
• Low power consumption: 1.2W typical at 2.5 Gbps
• Differential CML outputs with programmable swing
• Built-in loopback and PRBS test modes for diagnostics
• Supports hot insertion and removal
• Industrial temperature range (-40°C to +85°C)
• Small 13x13 mm BGA package for space-constrained designs

Target Applications

• 5G base station fronthaul/backhaul links
• Automotive infotainment and dashboard displays (e.g., high-speed video links)
• Industrial Ethernet and fieldbus interfaces
• Medical imaging equipment (e.g., ultrasound data links)
• Test and measurement equipment
• Data center interconnects

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TLK3131ZWQ. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
