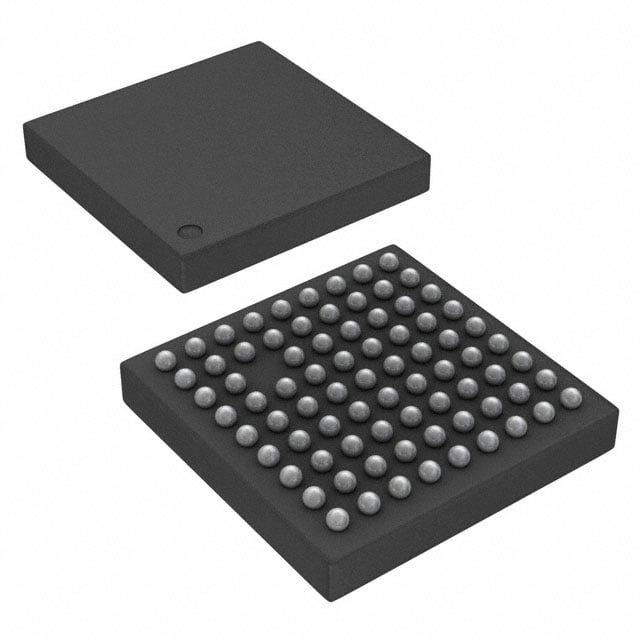

TLV320AIC23GQER TI Audio Codec | 80-BGAMICROSTARJUNIOR（5X5） | 96kHz, 24-bit, SNR 90dB

Product Overview

The TLV320AIC23GQER is a high-performance stereo audio codec from Texas Instruments, featuring a low-power architecture and high-fidelity audio processing. It integrates a 24-bit stereo DAC and ADC with sampling rates up to 96 kHz, providing excellent signal-to-noise ratio (SNR) of 90 dB for DAC and 90 dB for ADC. The device is housed in a compact 80-ball BGA MICROSTAR JUNIOR (5x5 mm) package, ideal for space-constrained applications. It supports multiple audio interfaces including I2S, left-justified, right-justified, and DSP modes, and offers programmable gain amplifiers, microphone bias, and headphone driver.

Detailed Technical Specifications

Key Features

• High-performance stereo audio codec with 24-bit resolution and 96 kHz sampling rate
• Low power consumption: 23 mW in playback mode
• Integrated headphone amplifier with programmable gain
• Programmable microphone bias and PGA for analog inputs
• Flexible audio interface supporting I2S, left/right-justified, and DSP formats
• Compact 80-ball BGA package (5x5 mm) for space-constrained designs
• Wide supply voltage range: 1.5V to 3.6V digital, 2.7V to 3.6V analog
• On-chip digital interpolation and decimation filters

Target Applications

• Portable audio devices: MP3 players, smartphones, tablets
• Automotive infotainment: dashboard audio systems, hands-free kits
• Telecommunications: 5G base station audio processing, VoIP terminals
• Professional audio: digital mixers, audio interfaces
• Industrial: voice guidance systems, intercoms

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TLV320AIC23GQER. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TLV320AIC23GQER 是德州儀器（TI）推出的一款高性能立體聲音頻編解碼器，具有低功耗架構和高保真音頻處理能力。它集成了24位立體聲DAC和ADC，採樣率高達96 kHz，提供90 dB的DAC信噪比（SNR）和90 dB的ADC SNR。該器件採用緊湊的80球BGA MICROSTAR JUNIOR（5x5 mm）封裝，適合空間受限的應用。它支持多種音頻接口，包括I2S、左對齊、右對齊和DSP模式，並提供可編程增益放大器、麥克風偏壓和耳機驅動器。

詳細技術參數

核心特性

• 高性能立體聲音頻編解碼器，24位分辨率，96 kHz採樣率
• 低功耗：播放模式僅23 mW
• 集成耳機放大器，可編程增益
• 可編程麥克風偏壓和模擬輸入PGA
• 靈活的音頻接口，支持I2S、左/右對齊和DSP格式
• 緊湊的80球BGA封裝（5x5 mm），適合空間受限設計
• 寬電源電壓範圍：數字1.5V至3.6V，模擬2.7V至3.6V
• 片內數字插值和抽取濾波器

典型應用場景

• 便攜式音頻設備：MP3播放器、智能手機、平板電腦
• 汽車信息娛樂：儀表板音頻系統、免提套件
• 電信：5G基站音頻處理、VoIP終端
• 專業音頻：數字調音台、音頻接口
• 工業：語音導航系統、對講機

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TLV320AIC23GQER 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
