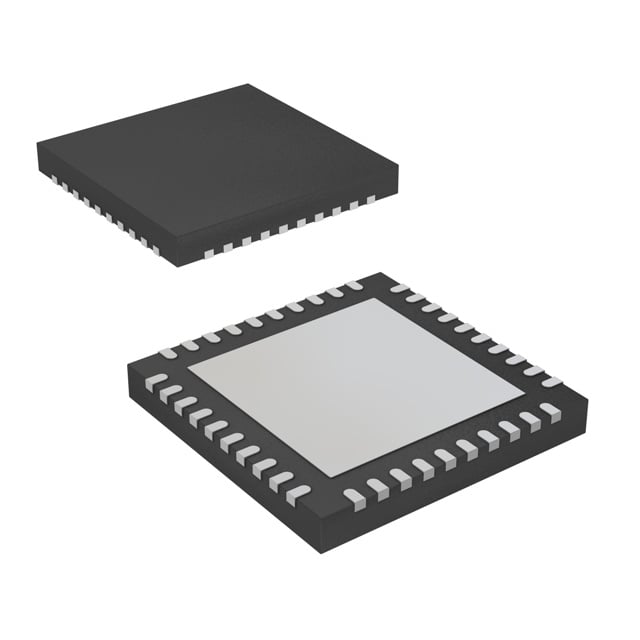

TLV320AIC3007IRSBR TI Audio Codec | 40-WQFN (5x5) | 96kHz, 24-bit

Product Overview

The TLV320AIC3007IRSBR is a low-power, high-performance stereo audio codec from Texas Instruments, designed for portable and embedded audio applications. It integrates a stereo audio DAC and ADC, microphone preamplifier, speaker amplifier, and headphone driver in a compact 40-pin WQFN package (5x5 mm). The device supports sample rates up to 96 kHz and 24-bit resolution, delivering excellent audio quality with low power consumption.

Detailed Technical Specifications

Key Features

• Stereo audio DAC with 92 dB SNR and 24-bit resolution
• Stereo audio ADC with 90 dB SNR and 24-bit resolution
• Integrated microphone preamplifier with programmable gain
• Direct-path signal routing for low-latency monitoring
• Low power consumption: 14 mW playback, 12 mW record
• I2C control interface and I2S audio interface
• Programmable digital signal processing (DSP) effects
• Built-in speaker amplifier (1.1W into 8Ω)
• Headphone driver with 16Ω load capability
• Automatic gain control (AGC) for microphone input

Target Applications

• Smartphones and tablets
• Portable media players
• Voice over IP (VoIP) handsets
• Automotive infotainment systems (e.g., dashboard audio)
• 5G base station audio processing
• Industrial handheld terminals
• Medical audio devices (e.g., hearing aids)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TLV320AIC3007IRSBR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TLV320AIC3007IRSBR 是德州儀器（TI）推出的一款低功耗、高性能立體聲音頻編解碼器，專為便攜式和嵌入式音頻應用設計。它集成立體聲音頻 DAC 和 ADC、麥克風前置放大器、揚聲器放大器和耳機驅動器，採用緊湊的 40 引腳 WQFN 封裝（5x5 mm）。該器件支持高達 96 kHz 的採樣率和 24 位分辨率，以低功耗提供出色的音頻質量。

詳細技術參數

核心特性

• 立體聲音頻 DAC，92 dB 信噪比，24 位分辨率
• 立體聲音頻 ADC，90 dB 信噪比，24 位分辨率
• 集成麥克風前置放大器，可編程增益
• 直接路徑信號路由，實現低延遲監聽
• 低功耗：播放 14 mW，錄音 12 mW
• I2C 控制接口和 I2S 音頻接口
• 可編程數字信號處理（DSP）效果
• 內置揚聲器放大器（1.1W，8Ω）
• 耳機驅動器，支持 16Ω 負載
• 麥克風輸入自動增益控制（AGC）

典型應用場景

• 智能手機和平板電腦
• 便攜式媒體播放器
• 網絡電話（VoIP）話機
• 汽車信息娛樂系統（例如儀表板音頻）
• 5G 基站音頻處理
• 工業手持終端
• 醫療音頻設備（例如助聽器）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TLV320AIC3007IRSBR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
