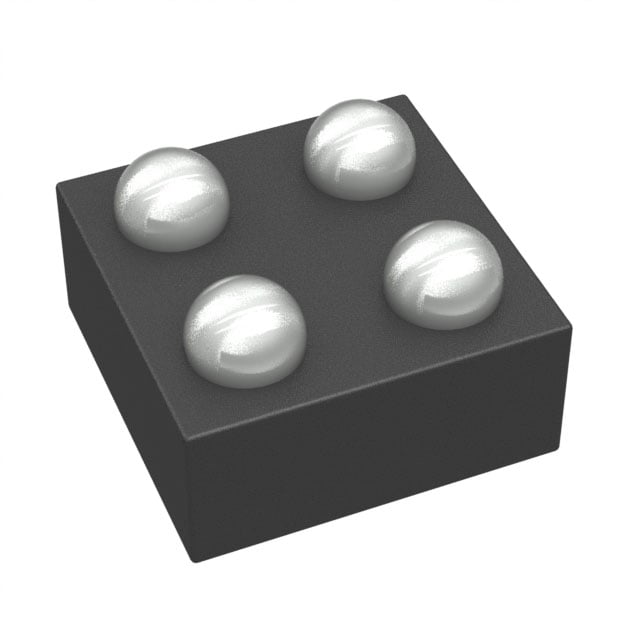

TLV70509YFPT TI LDO Regulator | 4-DSBGA | 5.5V Input, 200mA Output

Product Overview

The TLV70509YFPT from Texas Instruments is a low-dropout (LDO) linear voltage regulator designed for space-constrained applications. It offers a wide input voltage range of 2.5V to 5.5V and delivers up to 200mA of output current with excellent transient response. The device is available in a compact 4-pin DSBGA package (0.73mm x 0.73mm), making it ideal for portable and battery-powered electronics.

Detailed Technical Specifications

Key Features

• Ultra-low dropout voltage: 150mV at 200mA
• Low quiescent current: 25µA
• High PSRR: 60dB at 1kHz
• Low output noise: 30µVrms
• Stable with ceramic capacitors (1µF)
• Overcurrent and thermal protection
• Small footprint: 4-DSBGA package

Target Applications

• 5G base station power management
• Automotive dashboard displays
• Portable medical devices (e.g., glucose meters)
• Wearable electronics (smartwatches, fitness trackers)
• IoT modules (sensor nodes, wireless transceivers)
