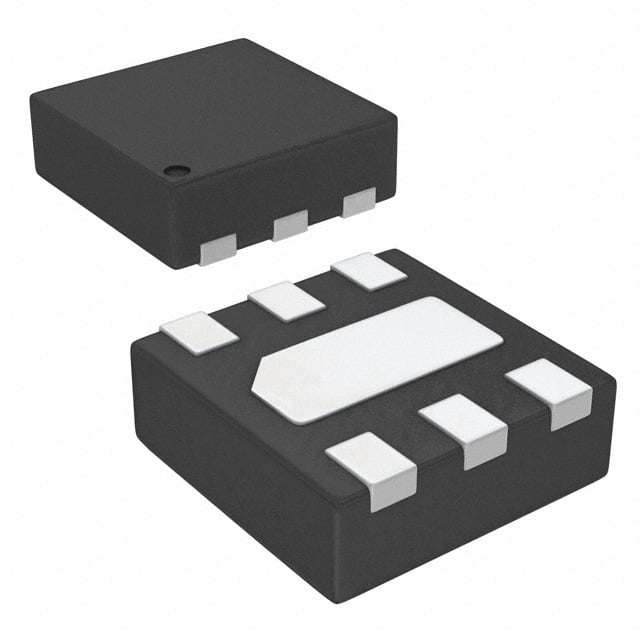

TLV7163030PDPQR TI LDO Regulator | 6-X2SON (1.2x1.2) | 3.0V Fixed Output, 150mA

Product Overview

The TLV7163030PDPQR is a low-dropout (LDO) linear voltage regulator from Texas Instruments, offering a fixed output voltage of 3.0V with a maximum output current of 150mA. Housed in a compact 6-pin X2SON package (1.2mm x 1.2mm), it is designed for space-constrained applications requiring high accuracy and low noise. The device features a typical dropout voltage of 200mV at 150mA load, making it suitable for battery-powered systems. With an input voltage range from 2.5V to 5.5V, it supports a wide variety of power rails.

Detailed Technical Specifications

Key Features

• Fixed 3.0V output with ±1% accuracy
• Low dropout voltage: 200mV at 150mA
• Ultra-small package: 1.2mm x 1.2mm X2SON
• Low quiescent current: 50µA typical
• High PSRR: 70dB at 1kHz
• Low output noise: 30µVrms
• Thermal shutdown and current limit protection
• Stable with ceramic output capacitors

Target Applications

• 5G base station power management (e.g., for RF transceiver modules)
• Automotive dashboard displays and infotainment systems
• Portable medical devices (e.g., glucose meters, pulse oximeters)
• Industrial sensor modules (e.g., pressure transmitters)
• IoT edge nodes and wearables

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TLV7163030PDPQR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TLV7163030PDPQR 是德州儀器（TI）推出的低壓差線性穩壓器（LDO），提供固定的 3.0V 輸出電壓，最大輸出電流為 150mA。採用緊湊的 6 引腳 X2SON 封裝（1.2mm x 1.2mm），專為空間受限且需要高精度和低噪聲的應用而設計。在 150mA 負載下，典型壓差電壓為 200mV，適合電池供電系統。輸入電壓範圍為 2.5V 至 5.5V，支持多種電源軌。

詳細技術參數

核心特性

• 固定 3.0V 輸出，精度 ±1%
• 低壓差：150mA 時典型值 200mV
• 超小封裝：1.2mm x 1.2mm X2SON
• 低靜態電流：典型值 50µA
• 高 PSRR：1kHz 時 70dB
• 低輸出噪聲：30µVrms
• 熱關斷和電流限制保護
• 可與陶瓷輸出電容器穩定工作

典型應用場景

• 5G 基站電源管理（例如射頻收發模塊）
• 汽車儀表盤顯示和信息娛樂系統
• 便攜式醫療設備（例如血糖儀、脈搏血氧儀）
• 工業傳感器模塊（例如壓力變送器）
• 物聯網邊緣節點和可穿戴設備

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TLV7163030PDPQR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
