TM4C123GE6PZT7 TI MCU | 100-LQFP (14X14) | 80MHz ARM Cortex-M4F, 256KB Flash

Product Overview

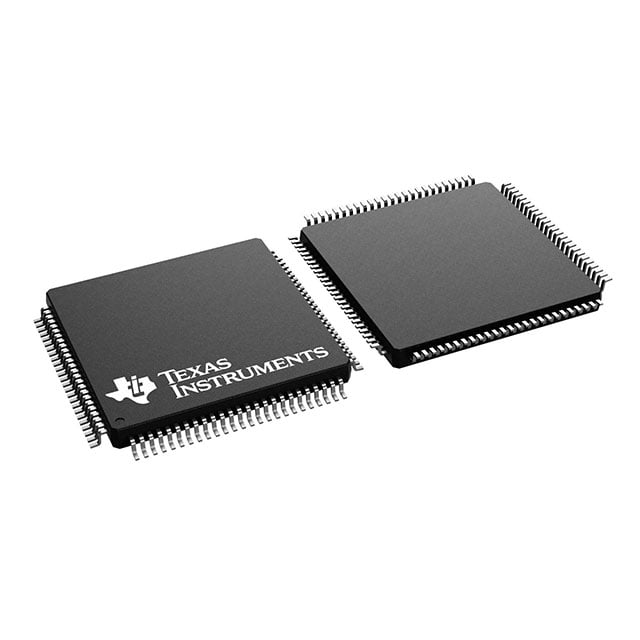

The TM4C123GE6PZT7 is a high-performance 32-bit ARM Cortex-M4F based microcontroller from Texas Instruments' Tiva C Series. It operates at up to 80 MHz and features 256 KB of flash memory, 32 KB of SRAM, and a rich set of peripherals including USB OTG, CAN, and multiple serial interfaces. Housed in a 100-pin LQFP package (14x14 mm), it is ideal for real-time control and connectivity applications.

Detailed Technical Specifications

Key Features

• ARM Cortex-M4F core with single-precision floating-point unit (FPU) for efficient signal processing.
• 256 KB flash and 32 KB SRAM for code and data storage.
• Integrated USB 2.0 OTG with PHY for flexible connectivity.
• Two CAN 2.0 A/B controllers for automotive and industrial networks.
• Multiple serial interfaces (UART, I2C, SSI/SPI) for sensor and peripheral integration.
• 12-bit ADC with up to 12 analog inputs.
• Advanced motion control with 16 PWM outputs and quadrature encoder interface.
• 32-channel DMA controller for efficient data transfers.
• Low-power modes for battery-operated applications.

Target Applications

• Industrial automation: PLCs, motor drives, and robotic controllers.
• Automotive: Body control modules, gateway modules, and infotainment systems.
• Consumer electronics: Smart home hubs, IoT gateways, and wearable devices.
• Medical devices: Patient monitoring systems and portable diagnostic equipment.
• Communication infrastructure: 5G base station control boards and network switches.
• Automotive dashboard: Instrument clusters and head-up displays.

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TM4C123GE6PZT7. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
