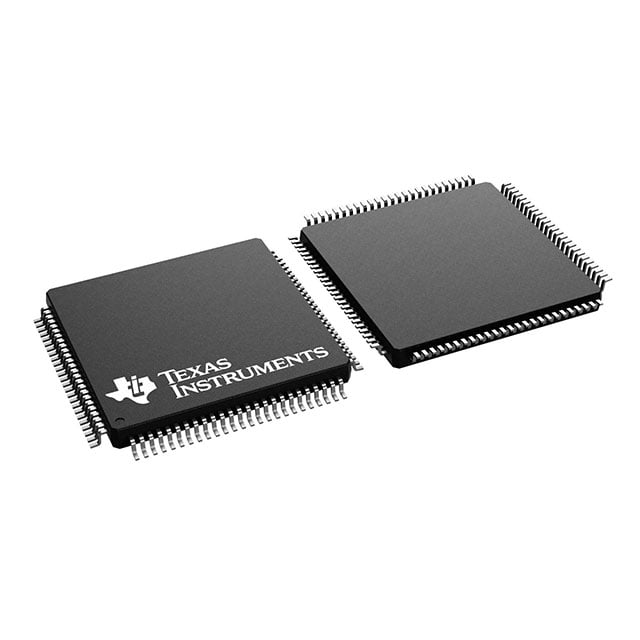

TM4C123GH6PZI7 TI MCU | 100-LQFP (14X14) | 80MHz, 256KB Flash

Product Overview

The TM4C123GH6PZI7 is a high-performance 32-bit ARM Cortex-M4F based microcontroller from Texas Instruments' Tiva C Series. It operates at up to 80 MHz, featuring a floating-point unit (FPU) for efficient signal processing. Housed in a 100-pin LQFP package (14x14 mm), it offers a rich set of peripherals including USB OTG, multiple serial interfaces, and advanced analog capabilities. This device is ideal for real-time control applications requiring high computational throughput and low power consumption.

Detailed Technical Specifications

Key Features

• ARM Cortex-M4F core with single-cycle multiply and hardware divide
• IEEE 754 compliant floating-point unit
• Integrated USB 2.0 OTG with PHY
• Advanced motion control PWM with dead-band generation
• Quadrature encoder interface (QEI)
• Two 12-bit ADCs with up to 1 MSPS
• Analog comparator and digital-to-analog converter (DAC)
• Six 32-bit and six 64-bit general-purpose timers
• Up to 65 GPIOs with programmable interrupt
• JTAG and Serial Wire Debug (SWD) for debugging
• Low-power modes: Sleep, Deep-sleep, Hibernate

Target Applications

• Industrial automation: PLCs, motor drives, robotic controllers
• Building automation: HVAC controllers, lighting systems
• Medical devices: Patient monitoring, diagnostic equipment
• Consumer electronics: Smart home hubs, gaming peripherals
• Automotive: Dashboard controllers, infotainment systems
• 5G base station: Control and monitoring modules
• IoT gateways: Data aggregation and protocol conversion

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TM4C123GH6PZI7. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
