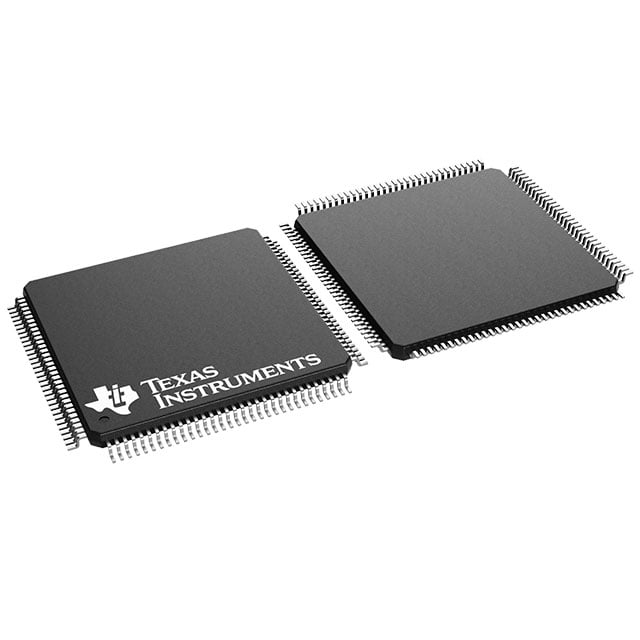

TM4C129ENCPDTT3 TI MCU | 128-TQFP (14x14) | 120MHz, 1MB Flash

Product Overview

The TM4C129ENCPDTT3 is a high-performance ARM Cortex-M4F based microcontroller from Texas Instruments' Tiva C Series. It operates at up to 120 MHz, featuring a floating-point unit (FPU) for efficient signal processing. With 1 MB of flash memory and 256 KB of SRAM, it is designed for connectivity-intensive applications requiring rich peripheral integration. The device comes in a 128-pin TQFP package (14x14 mm) and supports industrial temperature range (-40°C to +105°C).

Detailed Technical Specifications

Key Features

• ARM Cortex-M4F core with FPU for efficient DSP and floating-point operations
• Integrated 10/100 Ethernet MAC+PHY for industrial networking
• USB 2.0 OTG with PHY for versatile connectivity
• Advanced security: cryptographic acceleration (AES, DES, SHA, MD5, CRC)
• Rich analog: dual 12-bit ADCs, comparators, and temperature sensor
• Multiple serial interfaces: UART, I2C, SSI/SPI, CAN, and more
• Motion control: PWM, QEI, and fault inputs for motor control
• Low-power modes: sleep, deep-sleep, hibernate with battery backup
• Industrial temperature range and robust ESD protection

Target Applications

• Industrial automation: PLCs, motor drives, and remote I/O modules
• Building automation: HVAC controllers, lighting systems, and access control
• Smart grid: energy meters, power quality monitors, and substation automation
• Medical devices: patient monitors, infusion pumps, and diagnostic equipment
• Networking: Ethernet gateways, protocol converters, and IoT edge nodes
• Automotive: infotainment systems, telematics, and body control modules
• Consumer: smart home hubs, white goods, and gaming peripherals

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TM4C129ENCPDTT3. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TM4C129ENCPDTT3 是德州儀器 Tiva C 系列基於 ARM Cortex-M4F 的高性能微控制器。最高運行頻率 120 MHz，配備浮點運算單元 (FPU)，適用於高效信號處理。具有 1 MB 閃存和 256 KB SRAM，專為需要豐富外設的連接密集型應用設計。器件採用 128 引腳 TQFP 封裝 (14x14 mm)，支持工業溫度範圍 (-40°C 至 +105°C)。

詳細技術參數

核心特性

• ARM Cortex-M4F 內核帶 FPU，高效 DSP 和浮點運算
• 集成 10/100 以太網 MAC+PHY，適用於工業網絡
• USB 2.0 OTG 帶 PHY，靈活連接
• 高級安全：加密加速 (AES, DES, SHA, MD5, CRC)
• 豐富模擬：雙 12位 ADC、比較器和溫度傳感器
• 多種串行接口：UART、I2C、SSI/SPI、CAN 等
• 運動控制：PWM、QEI 和故障輸入，用於電機控制
• 低功耗模式：睡眠、深度睡眠、帶電池備份的休眠
• 工業溫度範圍和強大的 ESD 保護

典型應用場景

• 工業自動化：PLC、電機驅動和遠程 I/O 模塊
• 樓宇自動化：HVAC 控制器、照明系統和門禁控制
• 智能電網：電能表、電能質量監測和變電站自動化
• 醫療設備：病人監護儀、輸液泵和診斷設備
• 網絡通信：以太網網關、協議轉換器和 IoT 邊緣節點
• 汽車電子：信息娛樂系統、車載遠程信息處理和車身控制模塊
• 消費電子：智能家居中樞、白色家電和遊戲外設

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TM4C129ENCPDTT3 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
