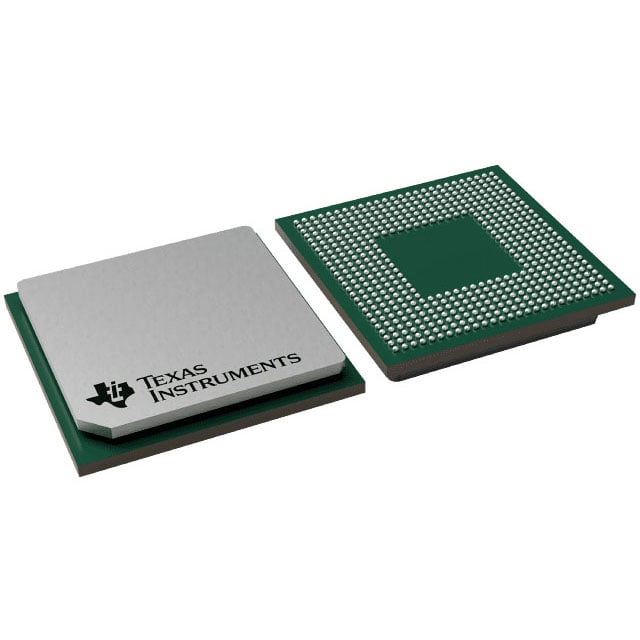

TMS320C6454BGTZA TI DSP | 697-FCBGA (24X24) | 1GHz, 2MB L2

Product Overview

The TMS320C6454BGTZA is a high-performance fixed-point digital signal processor (DSP) from Texas Instruments, based on the TMS320C64x+ core. It operates at up to 1 GHz, delivering 8000 MIPS, and is designed for demanding real-time signal processing applications. The device features 2 MB of on-chip L2 memory, a 64-bit DDR2 memory controller, and multiple high-speed interfaces including Serial RapidIO (SRIO), Gigabit Ethernet (GbE), and PCI Express. Housed in a 697-ball FCBGA package (24x24 mm), it is ideal for communications, industrial, and medical applications.

Detailed Technical Specifications

Key Features

• High-performance C64x+ DSP core at 1 GHz
• 2 MB on-chip L2 memory with flexible SRAM/cache partitioning
• 64-bit DDR2 memory controller for high-bandwidth external memory
• Integrated Serial RapidIO (SRIO) for high-speed interconnects
• Gigabit Ethernet MAC for network connectivity
• PCI Express interface for system expansion
• Enhanced DMA engine for efficient data movement
• Low-power design with multiple power-down modes

Target Applications

• 5G base station digital front-end processing
• Radar and sonar signal processing
• Medical imaging (ultrasound, MRI)
• Industrial automation and control
• Test and measurement equipment
• Audio and video processing
• Wireless infrastructure (e.g., remote radio heads)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TMS320C6454BGTZA. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TMS320C6454BGTZA 是德州儀器基於 TMS320C64x+ 內核的高性能定點數字信號處理器 (DSP)。它工作頻率高達 1 GHz，提供 8000 MIPS 的性能，專為要求苛刻的實時信號處理應用而設計。該器件具有 2 MB 片上 L2 存儲器、64 位 DDR2 存儲器控制器以及多個高速接口，包括 Serial RapidIO (SRIO)、千兆以太網 (GbE) 和 PCI Express。採用 697 球 FCBGA 封裝 (24x24 mm)，適用於通信、工業和醫療應用。

詳細技術參數

核心特性

• 高性能 C64x+ DSP 內核，主頻 1 GHz
• 2 MB 片上 L2 存儲器，靈活的 SRAM/緩存分區
• 64 位 DDR2 存儲器控制器，提供高帶寬外部存儲器
• 集成 Serial RapidIO (SRIO)，用於高速互連
• 千兆以太網 MAC，支持網絡連接
• PCI Express 接口，用於系統擴展
• 增強型 DMA 引擎，高效數據傳輸
• 低功耗設計，多種省電模式

典型應用場景

• 5G 基站數字前端處理
• 雷達和聲納信號處理
• 醫療成像 (超聲、MRI)
• 工業自動化與控制
• 測試與測量設備
• 音頻和視頻處理
• 無線基礎設施 (例如遠程射頻頭)

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TMS320C6454BGTZA 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
