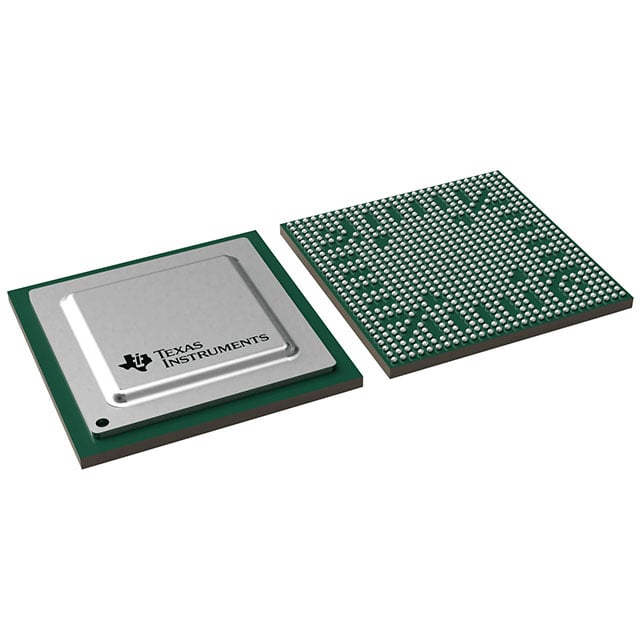

TMS320DM8147SCYE2 TI DSP | 684-pin FCBGA (23x23) | 1GHz ARM Cortex-A8, 750MHz C674x DSP

Product Overview

The TMS320DM8147SCYE2 is a high-performance digital media system-on-chip (SoC) from Texas Instruments, designed for advanced video processing and embedded vision applications. It integrates a 1GHz ARM Cortex-A8 core with a 750MHz C674x VLIW floating-point DSP, along with multiple hardware accelerators for video encoding/decoding, image processing, and display. The device is housed in a 684-pin FCBGA package (23x23mm) and is ideal for applications requiring real-time video analytics, multi-format codec support, and low power consumption.

Detailed Technical Specifications

Key Features

• Dual-core architecture: ARM Cortex-A8 for control and C674x DSP for signal processing
• Hardware video codec support up to 1080p60 H.264 encode/decode
• Integrated image signal processor (ISS) for camera input
• Multiple display outputs: HDMI, LVDS, VGA
• Rich peripheral set: Ethernet, USB 2.0, PCIe, SATA, CAN
• Industrial temperature range

Target Applications

• Video surveillance cameras (e.g., IP cameras, NVRs)
• Automotive driver assistance systems (e.g., dashcams, surround view)
• Medical imaging devices (e.g., endoscopy, ultrasound)
• Industrial machine vision (e.g., barcode readers, inspection systems)
• Video conferencing systems

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TMS320DM8147SCYE2. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TMS320DM8147SCYE2 是一款高性能數字媒體系統級芯片（SoC），專為先進視頻處理和嵌入式視覺應用設計。它集成了1GHz ARM Cortex-A8內核和750MHz C674x VLIW浮點DSP，以及多個硬件加速器，用於視頻編解碼、圖像處理和顯示。該器件採用684引腳FCBGA封裝（23x23mm），適用於需要實時視頻分析、多格式編解碼支持和低功耗的應用。

詳細技術參數

核心特性

• 雙核架構：ARM Cortex-A8用於控制，C674x DSP用於信號處理
• 硬件視頻編解碼支持高達1080p60 H.264編碼/解碼
• 集成圖像信號處理器（ISS）用於攝像頭輸入
• 多種顯示輸出：HDMI, LVDS, VGA
• 豐富的外設：以太網、USB 2.0、PCIe、SATA、CAN
• 工業級溫度範圍

典型應用場景

• 視頻監控攝像機（如IP攝像機、NVR）
• 汽車駕駛輔助系統（如行車記錄儀、環視系統）
• 醫療成像設備（如內窺鏡、超聲）
• 工業機器視覺（如條碼閱讀器、檢測系統）
• 視頻會議系統

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TMS320DM8147SCYE2 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
