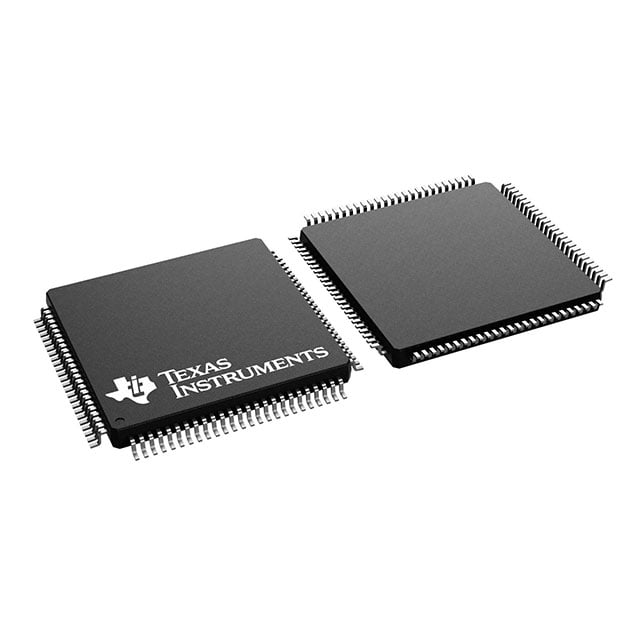

TMS320F2809PZQ TI DSP | 100-LQFP (14X14) | 100MHz, 256KB Flash

Product Overview

The TMS320F2809PZQ is a high-performance 32-bit digital signal processor (DSP) from Texas Instruments, part of the C2000™ real-time control microcontroller family. It integrates a 100MHz C28x core with advanced control peripherals, making it ideal for demanding real-time control applications. Housed in a 100-pin LQFP package (14x14mm), it offers a compact solution for embedded systems requiring high computational power and precise control.

Detailed Technical Specifications

Key Features

• High-performance 32-bit CPU with 100 MIPS
• Integrated 256KB flash and 36KB SRAM
• Enhanced PWM modules for motor control and power conversion
• 12-bit ADC with up to 16 channels and fast conversion
• Multiple serial communication interfaces (SCI, SPI, I2C, CAN, McBSP)
• On-chip oscillator and watchdog timer
• Low-power modes for energy-efficient operation
• Industrial temperature range

Target Applications

• Industrial motor drives (e.g., servo drives, AC induction motors)
• Renewable energy systems (e.g., solar inverters, wind turbine controllers)
• Digital power supplies (e.g., server PSUs, telecom rectifiers)
• Automotive systems (e.g., electric power steering, engine control units)
• 5G base station power management
• Robotics and CNC machine controllers
• Smart grid and power line communication

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TMS320F2809PZQ. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
