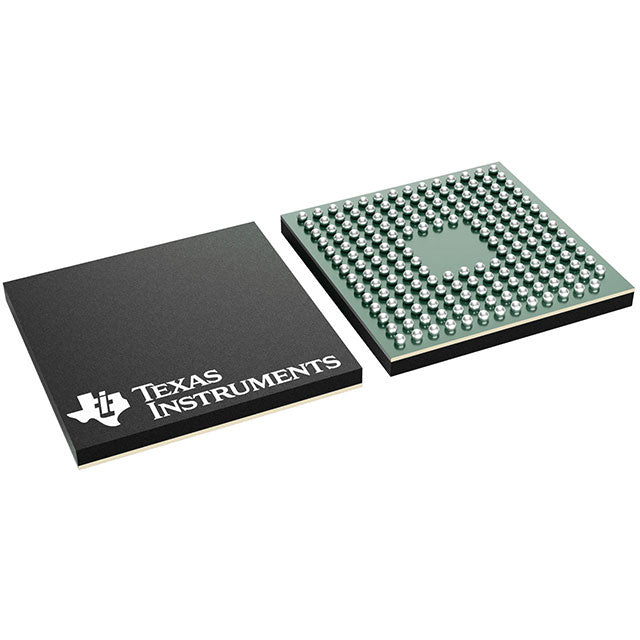

TMS320F28335ZAYAR TI MCU | 179-NFBGA(12X12) | 150MHz, 512KB Flash

Product Overview

The TMS320F28335ZAYAR is a high-performance 32-bit floating-point microcontroller from Texas Instruments' C2000 real-time control family. It integrates a 150 MHz CPU with single-precision floating-point unit (FPU), up to 512KB of flash memory, and 68KB of SRAM. Housed in a compact 179-ball NFBGA (12x12 mm) package, it is designed for advanced control applications requiring high computational throughput and precise real-time control.

Detailed Technical Specifications

Key Features

• 150 MHz 32-bit floating-point C28x core with FPU for efficient math-intensive algorithms
• Up to 512 KB on-chip flash and 68 KB SRAM
• 18 enhanced PWM outputs with high-resolution capability (150 ps)
• 12-bit ADC with 16 channels and fast conversion (80 ns)
• Multiple communication peripherals: CAN, SCI, SPI, I2C, McBSP
• DMA controller for data transfer without CPU intervention
• On-chip oscillator and watchdog timer
• Industrial temperature range (-40°C to +125°C)

Target Applications

• Industrial motor drives and servo control (e.g., ABB ACS880 drives)
• Renewable energy inverters (e.g., SMA Sunny Boy solar inverters)
• Digital power supplies (e.g., for 5G base station power modules)
• Automotive: electric power steering (EPS) and battery management systems (BMS)
• Robotics: multi-axis motion controllers (e.g., KUKA robots)
• Avionics: flight control actuators

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TMS320F28335ZAYAR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TMS320F28335ZAYAR 是德州儀器 C2000 實時控制系列中的高性能 32 位浮點微控制器。它集成了 150 MHz CPU 與單精度浮點單元 (FPU)，最高 512KB 閃存和 68KB SRAM。採用緊湊的 179 球 NFBGA（12x12 mm）封裝，專為需要高計算吞吐量和精確實時控制的高級控制應用而設計。

詳細技術參數

核心特性

• 150 MHz 32位浮點 C28x 核心，帶 FPU，高效處理數學密集型算法
• 最高 512 KB 片上閃存和 68 KB SRAM
• 18 個增強型 PWM 輸出，具有高分辨率能力（150 ps）
• 12位 ADC，16 通道，快速轉換（80 ns）
• 多種通信外設：CAN、SCI、SPI、I2C、McBSP
• DMA 控制器，無需 CPU 干預即可傳輸數據
• 片上振盪器和看門狗定時器
• 工業溫度範圍（-40°C 至 +125°C）

典型應用場景

• 工業電機驅動和伺服控制（例如 ABB ACS880 驅動器）
• 可再生能源逆變器（例如 SMA Sunny Boy 太陽能逆變器）
• 數字電源（例如 5G 基站電源模塊）
• 汽車：電動助力轉向 (EPS) 和電池管理系統 (BMS)
• 機器人：多軸運動控制器（例如 KUKA 機器人）
• 航空電子：飛行控制執行器

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TMS320F28335ZAYAR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
