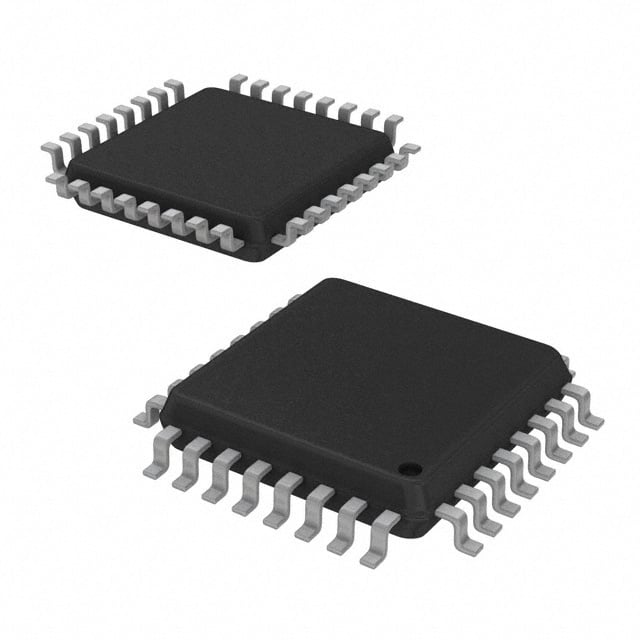

TMS320LF2401AVFA TI DSP Controller | 32-LQFP (7x7) | 40 MIPS, 16-bit

Product Overview

The TMS320LF2401AVFA is a 16-bit fixed-point digital signal processor (DSP) from Texas Instruments' TMS320C2000 family. It operates at up to 40 MIPS and integrates a 10-bit analog-to-digital converter (ADC) with 8 channels, PWM generation, and multiple serial communication interfaces. Housed in a compact 32-pin LQFP package (7x7 mm), it is designed for cost-sensitive, real-time control applications requiring high performance and low power consumption.

Detailed Technical Specifications

Key Features

• High-performance 16-bit DSP core with 40 MIPS throughput
• On-chip Flash memory for flexible program storage
• Integrated 10-bit ADC with fast conversion for sensor feedback
• PWM outputs with programmable deadband for motor control
• Low-power modes (IDLE, STANDBY, HALT) for energy efficiency
• Enhanced control peripherals: capture units, quadrature encoder pulse (QEP) interface
• Robust communication via SCI and SPI
• Industrial temperature range for harsh environments

Target Applications

• Motor control: Brushless DC (BLDC) motors in power tools, drones, and robotics
• Digital power supplies: AC-DC converters, DC-DC converters for telecom and server power
• Automotive: Electric power steering (EPS), engine management, and transmission control
• Industrial automation: PLCs, servo drives, and conveyor systems
• Consumer electronics: Smart home appliances like washing machines and air conditioners
• 5G base station: Power management and control for remote radio units
• Automotive dashboard: Instrument cluster control and display management

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TMS320LF2401AVFA. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
