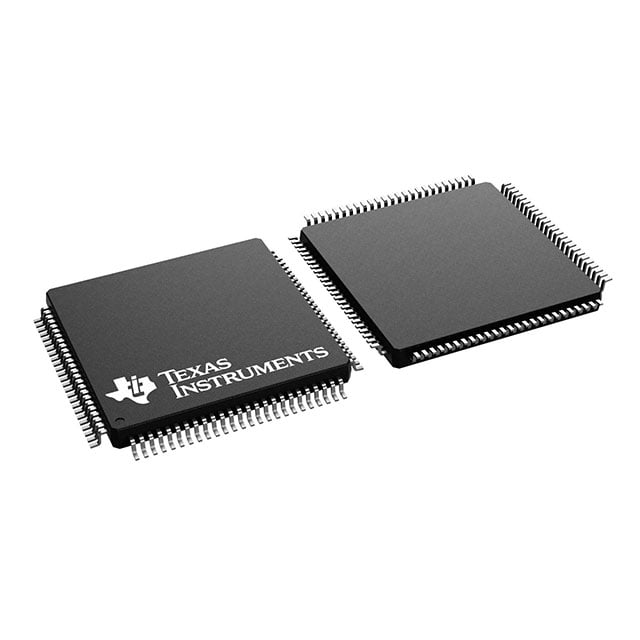

TMS320LF2406APZA TI DSP Controller | 100-LQFP (14x14) | 40MHz, 3.3V

Product Overview

The TMS320LF2406APZA is a high-performance digital signal controller from Texas Instruments, part of the TMS320C2000™ family. It integrates a 16-bit fixed-point DSP core with on-chip flash memory, high-speed ADCs, and advanced control peripherals, making it ideal for real-time control applications. Housed in a 100-pin LQFP package (14x14 mm), it operates at up to 40 MHz and offers a balanced blend of processing power and peripheral integration.

Detailed Technical Specifications

Key Features

• High-performance 16-bit DSP core with 40 MIPS throughput
• On-chip 64 KB flash and 4 KB RAM for flexible program/data storage
• Integrated 10-bit ADC with 8 analog inputs and fast conversion
• 12 PWM outputs with programmable deadband for motor control
• CAN 2.0B module for robust industrial communication
• Low-power modes (IDLE, STANDBY, HALT) for energy-sensitive designs
• Up to 41 general-purpose I/O pins with programmable pull-ups
• Event manager module with capture and quadrature encoder pulse (QEP) inputs

Target Applications

• Industrial motor drives (e.g., AC induction, BLDC, PMSM) for factory automation
• Uninterruptible power supplies (UPS) and power inverters
• Automotive systems: electric power steering, engine control units (ECU)
• Consumer appliances: washing machines, air conditioners, refrigerators
• Renewable energy: solar inverters, wind turbine controllers
• Robotics: servo control, motion control in collaborative robots
• 5G base station power management and thermal control
• Digital dashboard and infotainment systems in vehicles

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TMS320LF2406APZA. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
