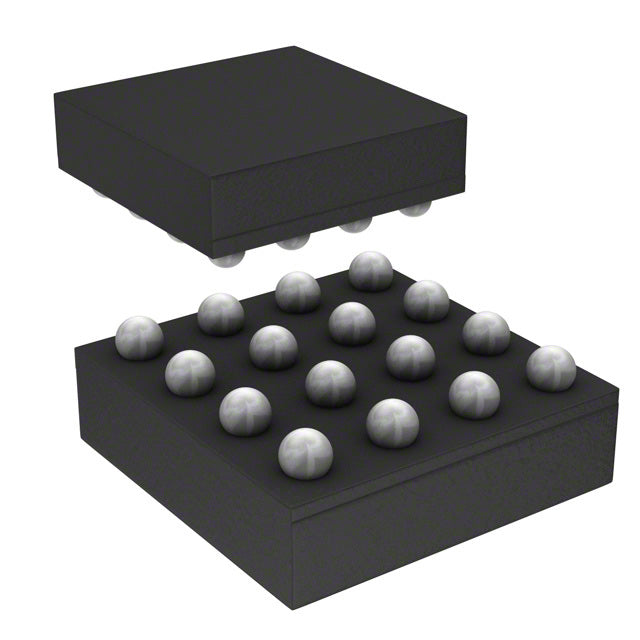

TPD5S115YFFR TI ESD Protection | 16-DSBGA (1.56X1.56) | 5V, 5A, 0.5pF

Product Overview

The TPD5S115YFFR from Texas Instruments is a high-performance ESD protection device designed for USB Type-C and HDMI interfaces. It integrates five channels of low-capacitance ESD protection diodes with a typical capacitance of 0.5 pF per channel, ensuring signal integrity for high-speed data lines up to 5 Gbps. The device is housed in a compact 16-DSBGA package measuring 1.56 mm x 1.56 mm, making it ideal for space-constrained applications. It provides robust protection against ESD strikes up to ±15 kV (contact) and ±20 kV (air) per IEC 61000-4-2.

Detailed Technical Specifications

Key Features

• Ultra-low capacitance: 0.5 pF per channel for high-speed signal integrity
• High ESD protection: ±15 kV contact, ±20 kV air discharge
• Low leakage current: < 100 nA at 5 V
• Small footprint: 16-DSBGA package (1.56 mm x 1.56 mm)
• RoHS compliant and lead-free

Target Applications

• USB Type-C and USB 3.1/3.2 interfaces in smartphones, tablets, and laptops
• HDMI 2.0/2.1 ports in 4K/8K TVs, monitors, and projectors
• 5G base station control boards requiring ESD protection for high-speed data lines
• Automotive infotainment systems, such as dashboard displays and rear-seat entertainment
• Industrial cameras and machine vision systems with GigE or USB interfaces

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TPD5S115YFFR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
