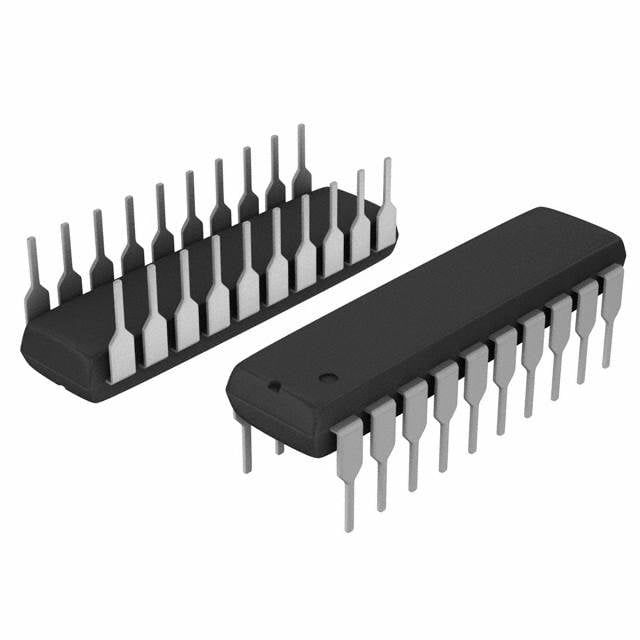

TPIC6A259NE TI Power Distribution Switch | 20-PDIP | 8-Channel, 1.2A

Product Overview

The TPIC6A259NE from Texas Instruments is a high-voltage, high-current power distribution switch designed for rugged industrial and automotive applications. It integrates eight 1.2A DMOS power transistors with a 3-to-8 decoder, providing a compact solution for driving resistive and inductive loads. The device operates over a wide supply voltage range of 5V to 15V and features built-in protection against overcurrent, overtemperature, and ESD. Housed in a 20-pin PDIP package, it offers reliable performance in harsh environments.

Detailed Technical Specifications

Key Features

• Eight 1.2A DMOS power transistors with integrated decoder
• Low RDS(on) minimizes power dissipation
• Built-in overcurrent and overtemperature protection
• ESD protection up to 2 kV HBM
• Wide supply voltage range suitable for 5V and 12V systems
• TTL/CMOS compatible inputs for easy microcontroller interface
• Industry-standard 20-PDIP package for through-hole assembly

Target Applications

The TPIC6A259NE is ideal for driving solenoids, relays, lamps, and motors in automotive and industrial systems. Specific applications include: automotive body control modules (e.g., door lock actuators, window lift motors), industrial PLC output stages, 5G base station power distribution for antenna tilt motors, and LED lighting arrays in dashboard displays. Its robust protection makes it suitable for harsh environments like engine control units and factory automation.

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TPIC6A259NE. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
