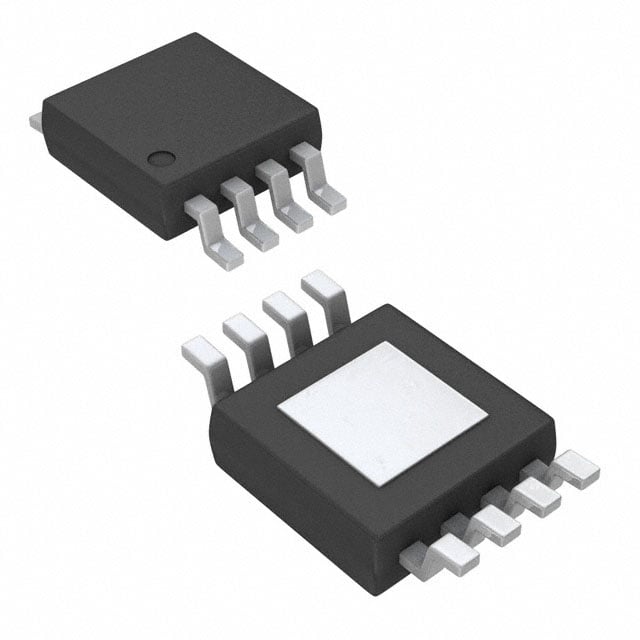

TPS2060DGN TI Power Distribution | 8-HVSSOP | 1A, 2.7-5.5V

Product Overview

The TPS2060DGN from Texas Instruments is a single-channel, current-limited power-distribution switch optimized for applications requiring precision current limiting and thermal protection. Housed in an 8-pin HVSSOP package, this device provides a compact solution for USB and general-purpose power management. It operates over a wide input voltage range of 2.7V to 5.5V and delivers up to 1A of continuous current. The TPS2060DGN features an integrated N-channel MOSFET with low on-resistance (70mΩ typical) to minimize power loss and voltage drop. Its built-in current-limiting function ensures safe operation under overload conditions, while thermal shutdown protection prevents damage from excessive heat. The device also includes an enable pin for ON/OFF control and a fault flag output for system monitoring. With its small footprint and robust protection features, the TPS2060DGN is ideal for space-constrained designs in consumer, industrial, and automotive electronics.

Detailed Technical Specifications

Key Features

• Single-channel current-limited power switch
• Low on-resistance: 70mΩ typical
• Precise current limiting: ±10% accuracy
• Wide input voltage range: 2.7V to 5.5V
• 1A continuous output current capability
• Thermal shutdown protection
• Enable pin for ON/OFF control
• Fault flag output (open-drain)
• Reverse current blocking
• Small 8-pin HVSSOP package

Target Applications

The TPS2060DGN is designed for a variety of applications requiring reliable power distribution and protection. Specific examples include:

• USB ports in laptops, docking stations, and monitors
• 5G base station power management modules
• Automotive infotainment systems and dashboard displays
• Industrial control panels and PLCs
• Portable battery-powered devices
• Set-top boxes and gaming consoles

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TPS2060DGN. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
