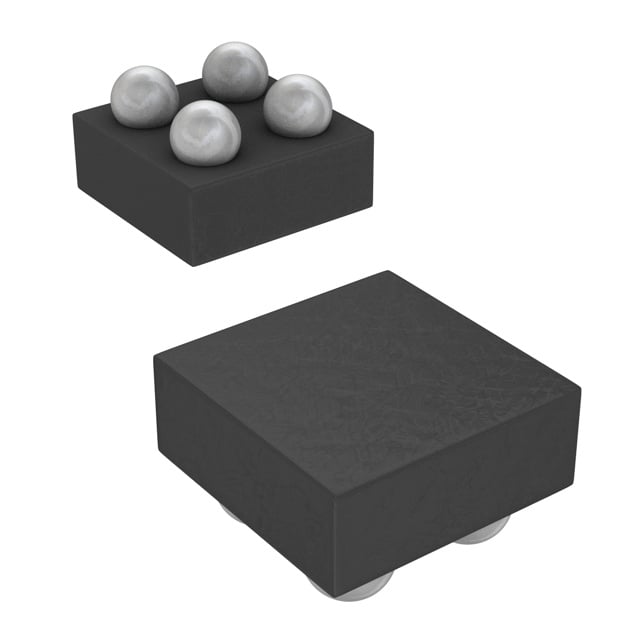

TPS22916BYFPR TI Power Switch | 4-DSBGA | 5.5V, 2A, 60mΩ

Product Overview

The TPS22916BYFPR from Texas Instruments is a small, low-RON, single-channel load switch with controlled slew rate. It supports a maximum input voltage of 5.5V and continuous current up to 2A. The device features an ultra-low ON-resistance of 60mΩ (typical) to minimize power loss and voltage drop. It is available in a compact 4-pin DSBGA package (0.8mm x 0.8mm), making it ideal for space-constrained applications. The TPS22916BYFPR integrates a quick output discharge (QOD) function to discharge the output capacitor when the switch is disabled, ensuring fast turn-off.

Detailed Technical Specifications

Key Features

• Ultra-low ON-resistance: 60mΩ at 5V
• Low quiescent current: 0.5µA
• Quick output discharge (QOD) for fast turn-off
• Controlled slew rate to reduce inrush current
• Small package: 4-DSBGA (0.8mm x 0.8mm)
• Enable active high with internal pull-down
• Thermal shutdown protection

Target Applications

• 5G base station power sequencing
• Automotive dashboard infotainment systems
• Portable and battery-powered devices
• Solid-state drives (SSD)
• Industrial sensors and IoT modules
• Smartphones and tablets

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TPS22916BYFPR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TPS22916BYFPR 是德州儀器（TI）推出的一款小型、低導通電阻的單通道負載開關，具有受控的壓擺率。它支持最高 5.5V 的輸入電壓和 2A 的連續電流。該器件具有超低導通電阻（典型值 60mΩ），可最大限度地減少功率損耗和電壓降。它採用緊湊的 4 引腳 DSBGA 封裝（0.8mm x 0.8mm），非常適合空間受限的應用。TPS22916BYFPR 集成了快速輸出放電（QOD）功能，可在開關禁用時對輸出電容器放電，確保快速關斷。

詳細技術參數

核心特性

• 超低導通電阻：5V 時 60mΩ
• 低靜態電流：0.5µA
• 快速輸出放電（QOD）實現快速關斷
• 受控壓擺率以減小浪湧電流
• 小型封裝：4-DSBGA（0.8mm x 0.8mm）
• 使能高電平有效，帶內部下拉電阻
• 熱關斷保護

典型應用場景

• 5G 基站電源排序
• 汽車儀表板信息娛樂系統
• 便攜式和電池供電設備
• 固態硬盤（SSD）
• 工業傳感器和 IoT 模塊
• 智能手機和平板電腦

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TPS22916BYFPR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
