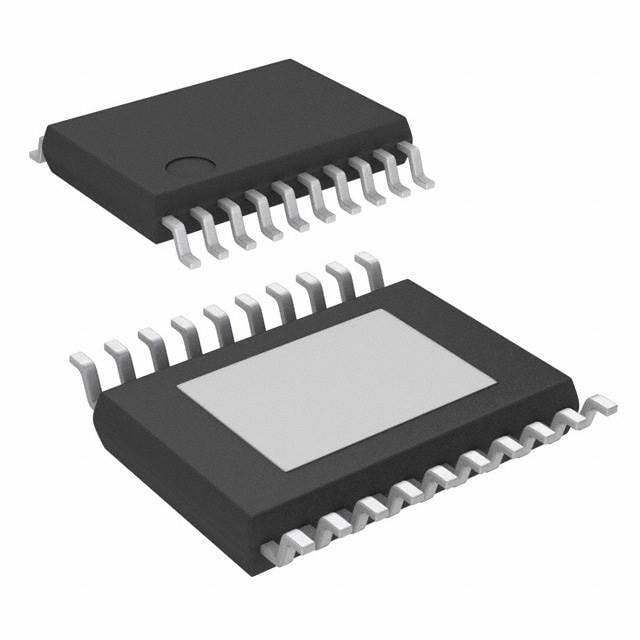

TPS23752PWPR TI PoE PD Controller | 20-HTSSOP | 802.3af/at, 2-Event Classification

Product Overview

The TPS23752PWPR is a highly integrated Power over Ethernet (PoE) Powered Device (PD) controller from Texas Instruments. It complies with IEEE 802.3af/at standards and supports 2-event classification for high-power applications. Housed in a compact 20-HTSSOP package, it provides a complete interface for PDs requiring up to 25.5 W of power. The device integrates a hot-swap MOSFET, current sense, and a PWM controller for isolated DC-DC converters, simplifying design and reducing BOM cost.

Detailed Technical Specifications

Key Features

• IEEE 802.3af/at compliant PD interface
• 2-event classification for high-power PDs
• Integrated 0.5-Ω hot-swap MOSFET
• Programmable current limit and inrush control
• Internal PWM controller for isolated flyback/buck converters
• Low quiescent current (1.5 mA typical)
• Thermal shutdown and fault protection
• Small 20-HTSSOP package

Target Applications

• 5G small cell base stations (e.g., Nokia AirScale, Ericsson Radio 4408)
• IP cameras (e.g., Hikvision DS-2CD2T47G2-LSU/SL)
• Wireless access points (e.g., Cisco Catalyst 9105AXI)
• Industrial sensors and IoT gateways
• PoE-powered lighting systems
• Digital signage and display panels

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TPS23752PWPR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
