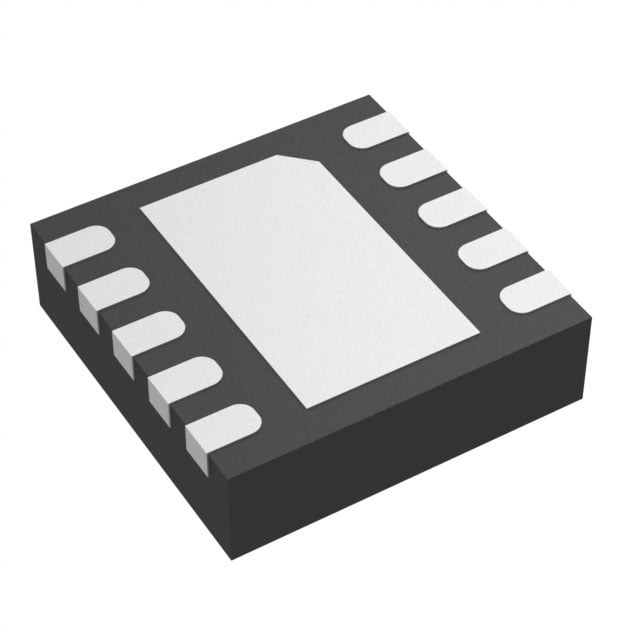

TPS259241DRCR TI eFuse | 10-VSON(3x3) | 5.5V, 5A, Adjustable Current Limit

Product Overview

The TPS259241DRCR from Texas Instruments is a compact, feature-rich eFuse (electronic fuse) designed for power path protection in modern electronic systems. Housed in a 10-pin VSON package (3mm x 3mm), this device integrates a low on-resistance MOSFET (typical 28mΩ) to provide overcurrent, overvoltage, and short-circuit protection with fast response time. It supports an input voltage range of 2.7V to 5.5V and can handle continuous currents up to 5A, making it ideal for USB Type-C, portable devices, and industrial applications. The adjustable current limit (via external resistor) and programmable output slew rate allow flexible design integration.

Detailed Technical Specifications

Key Features

• Integrated 28mΩ N-channel MOSFET for low power loss
• Adjustable current limit from 0.5A to 5A via external resistor
• Programmable output slew rate to control inrush current
• Overvoltage protection (OVP) with fixed threshold of 5.8V
• Under-voltage lockout (UVLO) with hysteresis
• Thermal shutdown with auto-retry
• Reverse current blocking when disabled
• Small 10-VSON package (3mm x 3mm) for space-constrained designs

Target Applications

• USB Type-C and Power Delivery (PD) ports
• 5G base station power management modules
• Automotive dashboard infotainment systems
• Portable battery-powered devices (e.g., smartphones, tablets)
• Industrial sensors and IoT gateways
• Solid-state drives (SSDs) and storage devices
