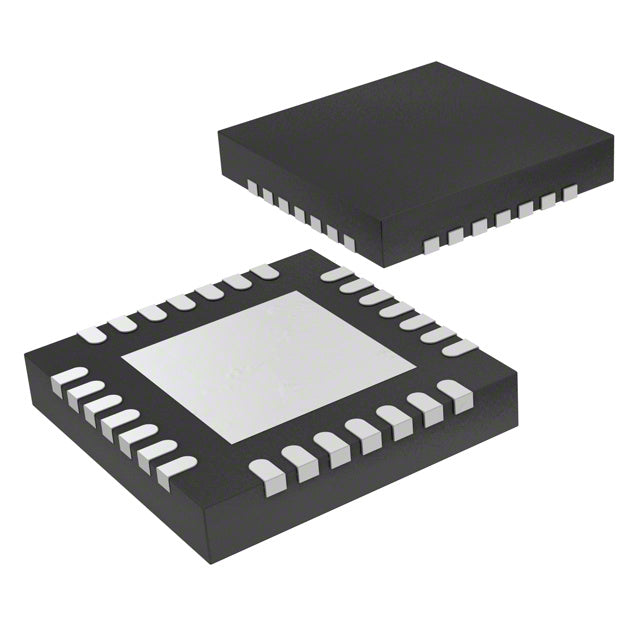

TPS274160ARLHR TI Power Switch | 28-WQFN (4x5) | 4-Ch, 60mOhm, 1.6A

Product Overview

The TPS274160ARLHR is a quad-channel, 60-mΩ high-side power switch from Texas Instruments, designed for robust power distribution in industrial and automotive systems. It integrates four independent channels with a continuous current rating of 1.6 A per channel, supporting loads up to 2.5 A per channel with proper thermal management. The device operates over a wide input voltage range of 4.5 V to 40 V, making it suitable for 12-V and 24-V systems. It features integrated protection including overcurrent, overtemperature, and short-circuit protection, as well as a dedicated enable pin for each channel. The compact 28-pin WQFN (4 mm × 5 mm) package enables space-constrained designs.

Detailed Technical Specifications

Key Features

• Quad-channel high-side switch with 60-mΩ typical RDS(on)
• 1.6-A continuous current per channel (2.5-A peak)
• Wide input voltage range: 4.5 V to 40 V
• Integrated protection: overcurrent, overtemperature, short-circuit, UVLO
• Individual channel enable pins with active-high logic
• Output discharge when disabled
• Small 28-WQFN package (4 mm × 5 mm)
• –40°C to +125°C operating temperature range

Target Applications

• Industrial PLC modules (e.g., Siemens S7-1200 digital output modules)
• 5G base station power distribution (e.g., Huawei 5G AAU)
• Automotive body control modules (e.g., dashboard lighting, seat control)
• Building automation (e.g., HVAC actuator control)
• Medical equipment (e.g., patient monitoring system power switches)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TPS274160ARLHR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
