TPS40002DGQ TI PWM Controller | 10-HVSSOP | 4.5V-15V Input, 1% Accuracy

Product Overview

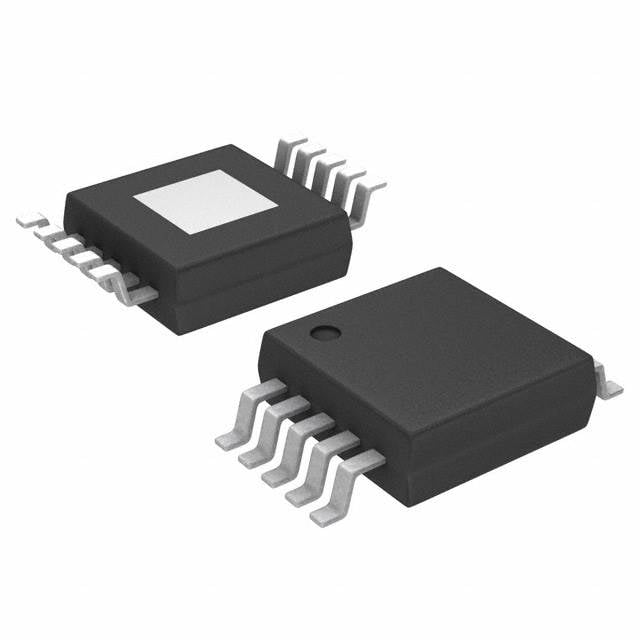

The TPS40002DGQ from Texas Instruments is a high-performance, fixed-frequency voltage-mode PWM controller designed for synchronous buck converters. It operates from an input voltage range of 4.5V to 15V and provides a regulated output with ±1% accuracy. Housed in a compact 10-pin HVSSOP package, this controller integrates key features such as programmable soft-start, undervoltage lockout (UVLO), and overcurrent protection. Its high switching frequency (up to 1 MHz) enables small external components, making it ideal for space-constrained power supply designs.

Detailed Technical Specifications

Key Features

• Voltage-mode PWM control with feed-forward compensation
• Programmable soft-start for inrush current limiting
• Undervoltage lockout with hysteresis
• Overcurrent protection using external sense resistor
• High switching frequency reduces inductor and capacitor size
• Low shutdown current (<10 µA)

Target Applications

The TPS40002DGQ is suitable for a wide range of applications requiring efficient and compact power conversion. Specific examples include:

• 5G base station power supplies
• Automotive dashboard and infotainment systems
• Industrial control systems
• Telecom and networking equipment
• Point-of-load (POL) converters for FPGAs and ASICs

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TPS40002DGQ. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
