TPS61177RGRR TI LED Driver | 20-VQFN (3.5x3.5) | 40V, 1.5A, PWM Dimming

Product Overview

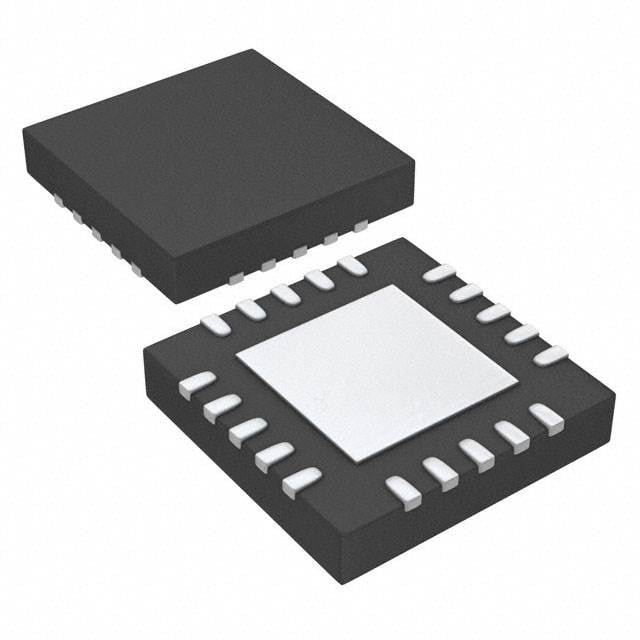

The TPS61177RGRR from Texas Instruments is a high-efficiency, 40V boost LED driver with integrated 1.5A switch. It is designed to drive up to 10 series white LEDs for backlighting applications. The device operates from a wide input voltage range of 2.7V to 18V, making it suitable for various power sources including single-cell Li-Ion batteries. The TPS61177RGRR features PWM dimming with a 5000:1 dimming ratio, enabling precise brightness control. The device is packaged in a compact 20-pin VQFN (3.5mm x 3.5mm) package, ideal for space-constrained designs.

Detailed Technical Specifications

Key Features

• Integrated 40V, 1.5A power switch
• Wide input voltage range: 2.7V to 18V
• High efficiency up to 90%
• PWM dimming with 5000:1 ratio
• Programmable switching frequency (600 kHz to 1.2 MHz)
• Built-in soft-start, overvoltage protection, and thermal shutdown
• Small 20-VQFN package (3.5mm x 3.5mm)

Target Applications

• 5G base station backlighting
• Automotive dashboard displays
• Industrial control panel backlighting
• Portable device backlighting (tablets, smartphones)
• Medical equipment displays

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TPS61177RGRR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
