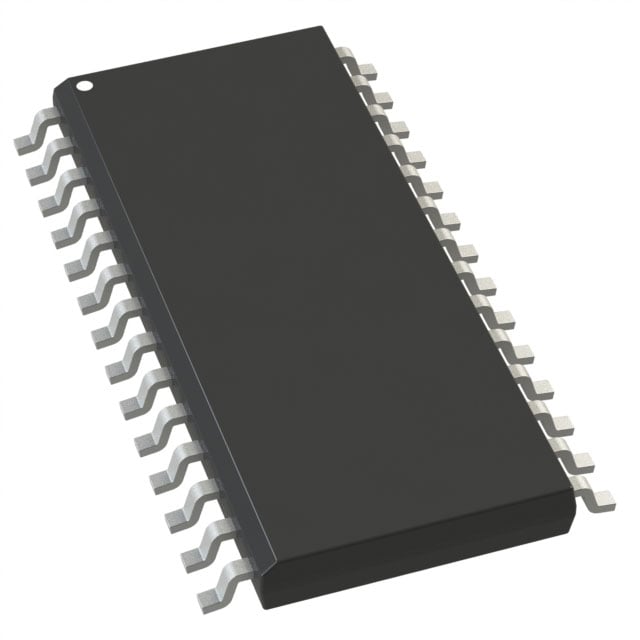

TPS61196PWPRQ1 TI LED Driver | 28-HTSSOP | 4.5V-40V, 6-Channel

Product Overview

The TPS61196PWPRQ1 from Texas Instruments is a highly integrated, automotive-grade, 6-channel LED driver designed for backlighting applications. It operates from a wide input voltage range of 4.5V to 40V, making it suitable for various automotive and industrial power rails. The device features a boost converter with integrated power MOSFET, current-mode control, and up to 90% efficiency. Each channel can drive up to 100 mA, with 8-bit analog and 8-bit PWM dimming for precise brightness control. The package is a 28-pin HTSSOP with PowerPAD for enhanced thermal performance.

Detailed Technical Specifications

Key Features

• Wide input voltage range: 4.5V to 40V
• 6-channel constant current sink
• Integrated boost converter with 1.5A/40V MOSFET
• Analog and PWM dimming
• Spread spectrum for EMI reduction
• Comprehensive fault protection
• AEC-Q100 qualified for automotive

Target Applications

• Automotive infotainment displays (e.g., Tesla Model 3 center console)
• Instrument cluster backlighting (e.g., Audi virtual cockpit)
• Head-up displays (HUD) in vehicles
• Industrial LCD panels (e.g., Siemens HMI)
• 5G base station status indicators
• Medical equipment displays (e.g., GE patient monitors)
