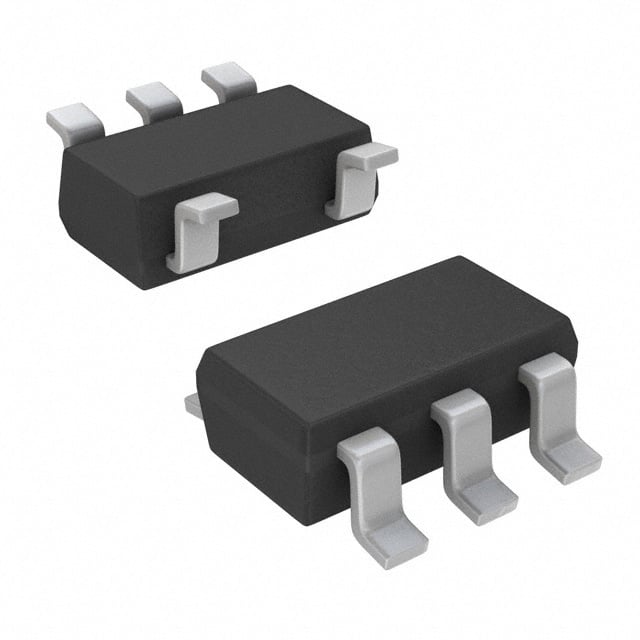

TPS62224DDCT TI Step-Down Converter | SOT-23-THIN | 2.25MHz, 400mA

Product Overview

The TPS62224DDCT from Texas Instruments is a high-efficiency, synchronous step-down DC-DC converter optimized for battery-powered and portable applications. Housed in a compact SOT-23-THIN package, it delivers up to 400 mA output current with a 2.25 MHz fixed switching frequency, enabling small external components. The device operates from a 2.5V to 6V input voltage range, making it suitable for single-cell Li-Ion, multi-cell alkaline, or NiMH batteries. Its high efficiency (up to 95%) extends battery life in power-sensitive designs.

Detailed Technical Specifications

Key Features

• High efficiency: up to 95% over wide load range
• 2.25 MHz fixed frequency PWM operation
• Low quiescent current: 15 µA (typical)
• Power-save mode for improved efficiency at light loads
• Internal soft-start limits inrush current
• Over-temperature and over-current protection
• Small SOT-23-THIN package (2.9mm x 1.6mm)

Target Applications

• Battery-powered portable devices (smartphones, tablets, wearables)
• Wireless IoT modules (e.g., CC2530, ESP32)
• 5G small cell base stations (power management for RF transceivers)
• Automotive dashboard displays and infotainment systems
• Industrial sensors and handheld instruments

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TPS62224DDCT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TPS62224DDCT 是德州儀器 (TI) 推出的一款高效同步降壓 DC-DC 轉換器，專為電池供電和便攜式應用優化。採用緊湊的 SOT-23-THIN 封裝，可提供高達 400 mA 的輸出電流，固定 2.25 MHz 開關頻率，支持小型外部元件。輸入電壓範圍為 2.5V 至 6V，適用於單節鋰離子、多節鹼性或鎳氫電池。高達 95% 的效率延長了功耗敏感設計中的電池壽命。

詳細技術參數

核心特性

• 高效率：寬負載範圍內高達 95%
• 2.25 MHz 固定頻率 PWM 操作
• 低靜態電流：15 µA (典型)
• 省電模式，輕負載時提高效率
• 內部軟啟動限制浪湧電流
• 過溫和過流保護
• 小型 SOT-23-THIN 封裝 (2.9mm x 1.6mm)

典型應用場景

• 電池供電便攜設備 (智能手機、平板電腦、可穿戴設備)
• 無線 IoT 模塊 (例如 CC2530、ESP32)
• 5G 小型基站 (射頻收發器的電源管理)
• 汽車儀表板顯示器和信息娛樂系統
• 工業傳感器和手持儀器

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TPS62224DDCT 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
