TPS62321YZDR TI Step-Down Converter | 8-DSBGA | 3A, 3MHz

Product Overview

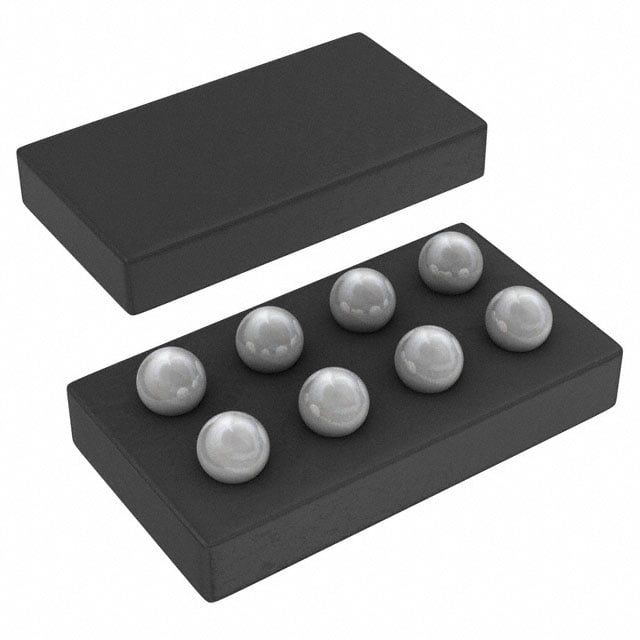

The TPS62321YZDR from Texas Instruments is a high-efficiency, synchronous step-down DC-DC converter optimized for low-power applications. It delivers up to 3A continuous output current from a 2.5V to 5.5V input supply. The device operates at a 3MHz fixed switching frequency, enabling the use of small external components. Housed in a compact 8-DSBGA package (1.5mm x 1.5mm), it is ideal for space-constrained designs.

Detailed Technical Specifications

Key Features

• High efficiency up to 95% reduces power loss
• 3MHz fixed frequency allows small inductor and capacitor
• Power-save mode for light-load efficiency
• 100% duty cycle for low dropout operation
• Over-temperature and over-current protection
• Precision enable and soft-start

Target Applications

The TPS62321YZDR is suitable for a wide range of applications including: 5G base station power management, portable devices (smartphones, tablets), wireless routers, IoT modules, battery-powered equipment, and point-of-load regulation in networking and telecom systems. Specific examples: powering RF transceivers in 5G small cells, core voltage supply for application processors in tablets, and I/O voltage for FPGA-based designs.

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TPS62321YZDR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TPS62321YZDR 是德州儀器推出的一款高效同步降壓 DC-DC 轉換器，專為低功耗應用優化。它可在 2.5V 至 5.5V 輸入電壓下提供高達 3A 的連續輸出電流。器件以 3MHz 固定開關頻率工作，允許使用小型外部元件。採用緊湊的 8-DSBGA 封裝（1.5mm x 1.5mm），非常適合空間受限的設計。

詳細技術參數

核心特性

• 高達 95% 的效率，降低功耗
• 3MHz 固定頻率，允許使用小型電感和電容
• 省電模式，輕載時保持高效率
• 100% 佔空比，實現低壓差操作
• 過溫和過流保護
• 精確使能和軟啟動

典型應用場景

TPS62321YZDR 適用於多種應用，包括：5G 基站電源管理、便攜設備（智能手機、平板電腦）、無線路由器、IoT 模塊、電池供電設備以及網絡和電信系統中的負載點穩壓。具體示例：為 5G 小基站中的射頻收發器供電、為平板電腦中的應用處理器提供核心電壓、為基於 FPGA 的設計提供 I/O 電壓。

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TPS62321YZDR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
