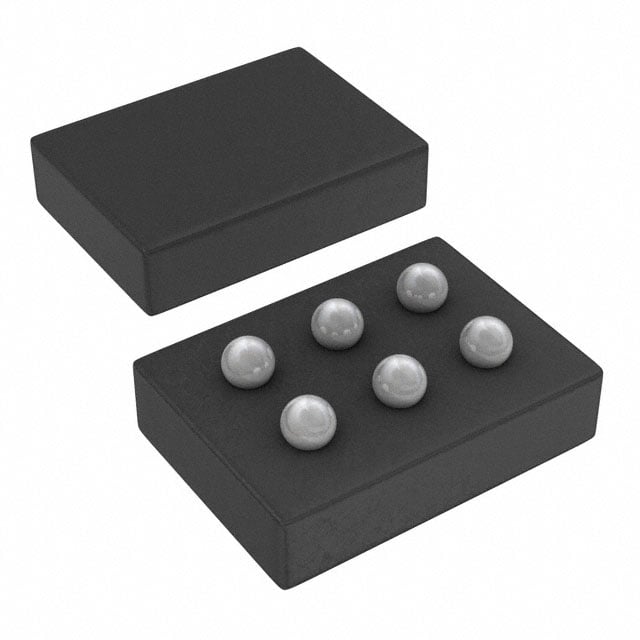

TPS62619YFDR TI Step-Down Converter | 6-DSBGA | 3MHz, 800mA

Product Overview

The TPS62619YFDR from Texas Instruments is a high-efficiency, synchronous step-down DC-DC converter optimized for battery-powered and space-constrained applications. Housed in a compact 6-pin DSBGA package (0.9mm x 1.3mm), it delivers up to 800mA output current with a 3MHz switching frequency, enabling small external components. The device operates from a 2.3V to 5.5V input voltage range and provides a fixed output voltage of 1.8V with ±2% accuracy. Advanced features include forced PWM and auto PFM/PWM modes for high efficiency across load ranges, output voltage discharge, and over-temperature protection.

Detailed Technical Specifications

Key Features

• High efficiency: up to 90% at light loads with auto PFM/PWM mode
• 3MHz fixed switching frequency minimizes external inductor and capacitor size
• Output voltage discharge feature ensures fast startup
• Internal soft-start limits inrush current
• Over-current and over-temperature protection
• Low quiescent current: 17µA (typical)

Target Applications

• Smartphones and tablets (e.g., Samsung Galaxy S series, Apple iPad)
• Wearable devices (e.g., Fitbit Charge, Apple Watch)
• Portable medical devices (e.g., glucose monitors, pulse oximeters)
• IoT modules (e.g., Nordic nRF52840, ESP32)
• 5G small cell base stations (e.g., Nokia AirScale)
• Automotive dashboard displays (e.g., Tesla Model 3 center console)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TPS62619YFDR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TPS62619YFDR 是德州儀器（TI）推出的一款高效同步降壓 DC-DC 轉換器，專為電池供電和空間受限的應用而設計。採用緊湊的 6 引腳 DSBGA 封裝（0.9mm x 1.3mm），在 3MHz 開關頻率下可提供高達 800mA 的輸出電流，從而實現小型外部元件。該器件在 2.3V 至 5.5V 輸入電壓範圍內工作，提供 1.8V 固定輸出電壓，精度為 ±2%。先進功能包括強制 PWM 和自動 PFM/PWM 模式，可在負載範圍內實現高效率，以及輸出電壓放電和過溫保護。

詳細技術參數

核心特性

• 高效率：輕載時自動 PFM/PWM 模式，效率高達 90%
• 3MHz 固定開關頻率，減小外部電感和電容尺寸
• 輸出電壓放電功能，確保快速啟動
• 內部軟啟動限制浪湧電流
• 過流和過溫保護
• 低靜態電流：17µA（典型）

典型應用場景

• 智能手機和平板電腦（例如三星 Galaxy S 系列、Apple iPad）
• 可穿戴設備（例如 Fitbit Charge、Apple Watch）
• 便攜式醫療設備（例如血糖儀、脈搏血氧儀）
• 物聯網模塊（例如 Nordic nRF52840、ESP32）
• 5G 小型基站（例如 Nokia AirScale）
• 汽車儀表板顯示屏（例如 Tesla Model 3 中控台）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TPS62619YFDR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
