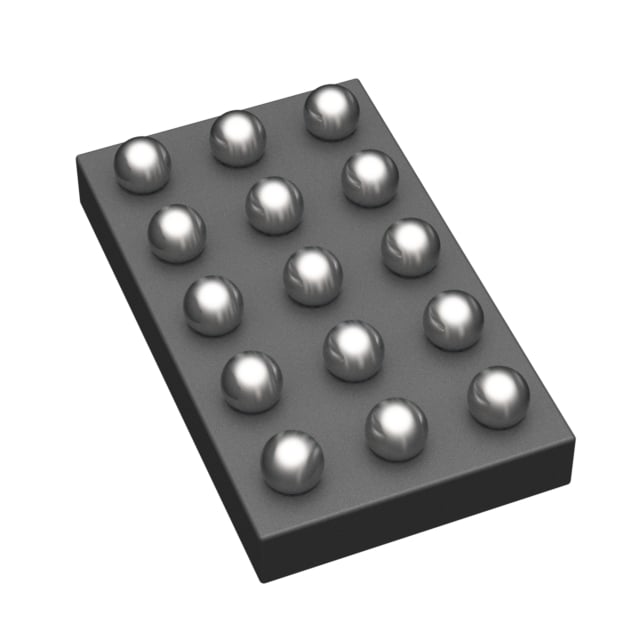

TPS628640AYCGR TI Step-Down Converter | 15-DSBGA (1.78x1.05) | 2.7V-6V Input, 4A Output

Product Overview

The TPS628640AYCGR from Texas Instruments is a high-efficiency, synchronous step-down (buck) converter capable of delivering up to 4A of continuous output current. It operates over a wide input voltage range of 2.7V to 6V, making it suitable for a variety of low-voltage power supply applications. The device is housed in a compact 15-pin DSBGA package measuring 1.78mm x 1.05mm, ideal for space-constrained designs. With its advanced modulation scheme and low quiescent current, the TPS628640AYCGR achieves excellent efficiency across the entire load range, making it an optimal choice for battery-powered and industrial systems.

Detailed Technical Specifications

Key Features

• High efficiency up to 95% reduces power loss and heat generation.
• Ultra-low quiescent current of 12 µA extends battery life in portable devices.
• 2.4 MHz switching frequency allows use of small inductors and capacitors, minimizing solution size.
• Power-save mode for improved light-load efficiency.
• Output voltage accuracy of ±1% over line, load, and temperature.
• Integrated soft-start reduces inrush current.
• Overcurrent and overtemperature protection for robust operation.

Target Applications

• 5G base station power supplies (e.g., remote radio units)
• Automotive dashboard and infotainment systems
• Industrial sensors and actuators
• Portable and battery-powered equipment (e.g., handheld terminals)
• Solid-state drives (SSDs) and memory modules

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TPS628640AYCGR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TPS628640AYCGR 是德州儀器（TI）推出的一款高效同步降壓轉換器，可提供高達 4A 的連續輸出電流。其輸入電壓範圍為 2.7V 至 6V，適用於多種低電壓電源應用。該器件採用緊湊的 15 引腳 DSBGA 封裝，尺寸僅為 1.78mm x 1.05mm，非常適合空間受限的設計。憑藉先進的調製方案和低靜態電流，TPS628640AYCGR 在整個負載範圍內實現了卓越的效率，是電池供電和工業系統的理想選擇。

詳細技術參數

核心特性

• 高達 95% 的效率，降低功耗和發熱。
• 超低靜態電流 12 µA，延長便攜設備的電池壽命。
• 2.4 MHz 開關頻率，允許使用小型電感和電容，減小解決方案尺寸。
• 省電模式，改善輕載效率。
• 輸出電壓精度 ±1%（涵蓋線性、負載和溫度變化）。
• 集成軟啟動，減小浪湧電流。
• 過流和過溫保護，確保穩定運行。

典型應用場景

• 5G 基站電源（例如遠程射頻單元）
• 汽車儀表盤和信息娛樂系統
• 工業傳感器和執行器
• 便攜式和電池供電設備（例如手持終端）
• 固態硬盤（SSD）和內存模塊

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TPS628640AYCGR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
