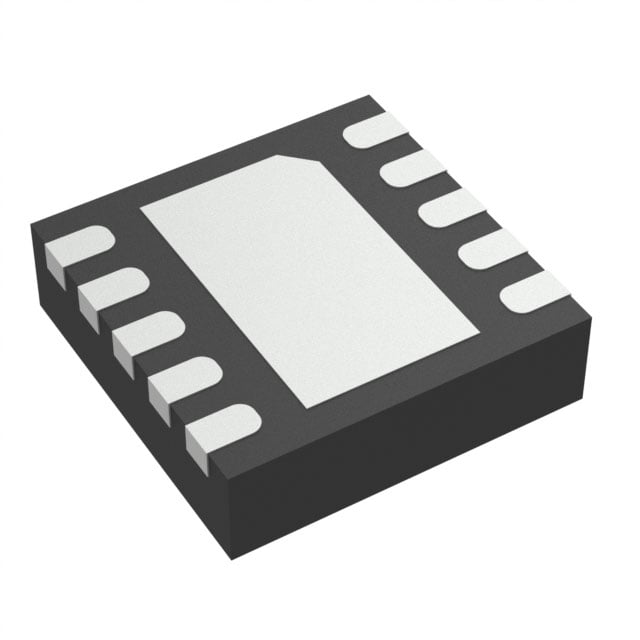

TPS65138DRCR TI PMIC | 10-VSON (3x3) | Dual Output, 1.5A, 2.2MHz

Product Overview

The TPS65138DRCR from Texas Instruments is a high-performance, dual-output power management IC (PMIC) designed for applications requiring both positive and negative voltage rails. Housed in a compact 10-pin VSON (3x3 mm) package, it integrates two independent step-down converters with a combined output current capability of up to 1.5A per channel. Operating at a fixed 2.2MHz switching frequency, it enables the use of small external components, reducing overall solution size. The device features a wide input voltage range of 2.7V to 5.5V, making it suitable for battery-powered and low-voltage systems.

Detailed Technical Specifications

Key Features

• Dual independent step-down converters with 180° out-of-phase operation to reduce input ripple
• High efficiency up to 95% over a wide load range
• Low quiescent current (40 µA) for extended battery life
• Internal compensation and soft-start
• Overcurrent and overtemperature protection
• Small 10-pin VSON package (3x3 mm) for space-constrained designs

Target Applications

• 5G base station power management (e.g., powering RF transceivers)
• Automotive dashboard displays and infotainment systems
• Portable medical devices (e.g., patient monitors)
• Industrial sensors and IoT gateways
• Battery-powered equipment (e.g., handheld terminals)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TPS65138DRCR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
