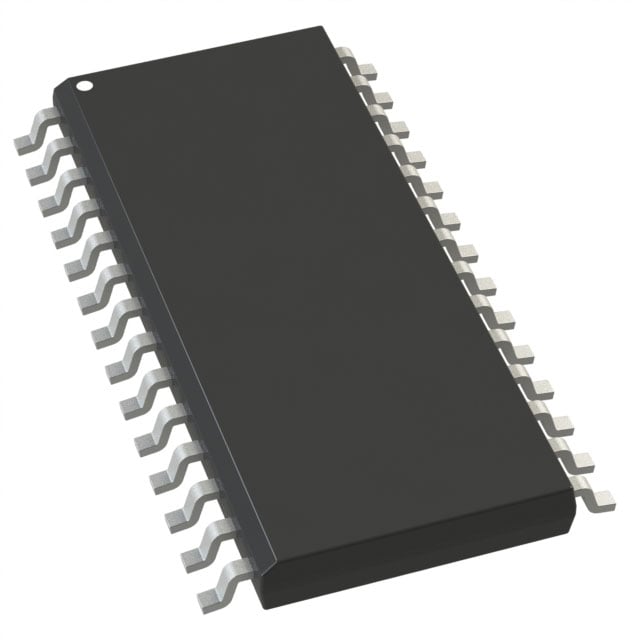

TPS65161PWPR TI Power Management IC | 28-HTSSOP | 4.5V-15V Input, 6-Channel

Product Overview

The TPS65161PWPR from Texas Instruments is a highly integrated power management IC designed for thin-film transistor (TFT) liquid crystal display (LCD) panels. It provides all necessary voltages for a TFT LCD panel, including the gate driver supply, source driver supply, and logic supply. The device operates from a 4.5V to 15V input voltage range and features six independent output channels: VGH (positive gate voltage), VGL (negative gate voltage), VDD (source driver voltage), VCOM (common electrode voltage), and two additional programmable outputs. The TPS65161PWPR is packaged in a 28-pin HTSSOP with PowerPAD for enhanced thermal performance.

Detailed Technical Specifications

Key Features

• Integrated 6-channel power supply for TFT LCD panels
• Wide input voltage range: 4.5V to 15V
• Programmable output voltages via external resistors
• High efficiency with 1.2 MHz switching frequency
• Built-in soft-start and overcurrent protection
• Thermal shutdown protection
• PowerPAD package for improved thermal dissipation

Target Applications

• Automotive infotainment displays (e.g., dashboard, center console)
• Industrial TFT LCD panels (e.g., HMI, test equipment)
• Medical display monitors
• Portable navigation devices
• 5G base station control panels

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TPS65161PWPR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
