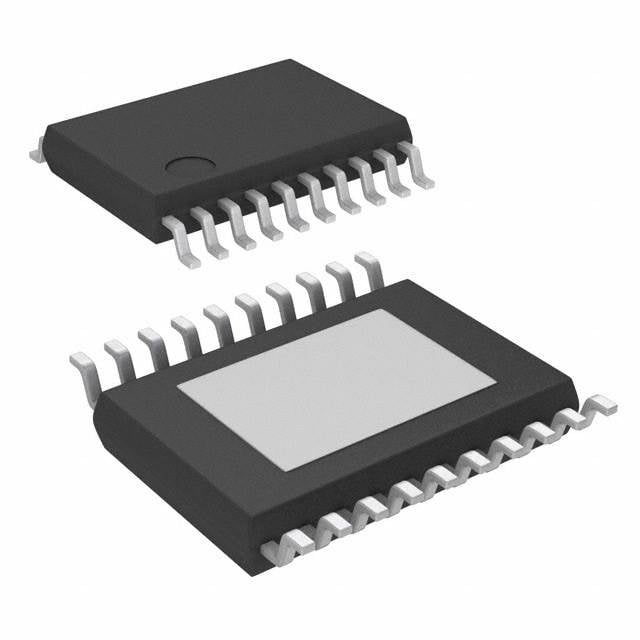

TPS65580PWPR TI Power Management IC | 20-HTSSOP | 4.5V-18V Input, 3A Output

Product Overview

The TPS65580PWPR from Texas Instruments is a high-efficiency, synchronous step-down (buck) converter integrated circuit designed for a wide range of power management applications. Housed in a compact 20-pin HTSSOP package with PowerPAD for enhanced thermal performance, this device delivers up to 3A of continuous output current. It operates over an input voltage range of 4.5V to 18V, making it suitable for systems powered from 5V, 12V, or intermediate bus voltages. The TPS65580PWPR integrates both high-side and low-side MOSFETs, reducing external component count and simplifying design. Its switching frequency is adjustable from 200 kHz to 2.2 MHz, allowing optimization between efficiency and solution size. The device also features a power-good output, enable control, and overcurrent protection.

Detailed Technical Specifications

Key Features

• Integrated 80mΩ high-side and 40mΩ low-side MOSFETs
• Adjustable soft-start to limit inrush current
• Power-good output for sequencing and monitoring
• Enable pin for on/off control
• Cycle-by-cycle current limit and hiccup mode overcurrent protection
• Thermal shutdown protection
• Small solution size with minimal external components

Target Applications

• 5G base station power supplies (e.g., for remote radio units)
• Automotive infotainment and dashboard systems
• Industrial control and automation equipment
• Networking and telecom equipment (e.g., routers, switches)
• Point-of-load (POL) regulation for FPGAs, ASICs, and DSPs

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TPS65580PWPR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
