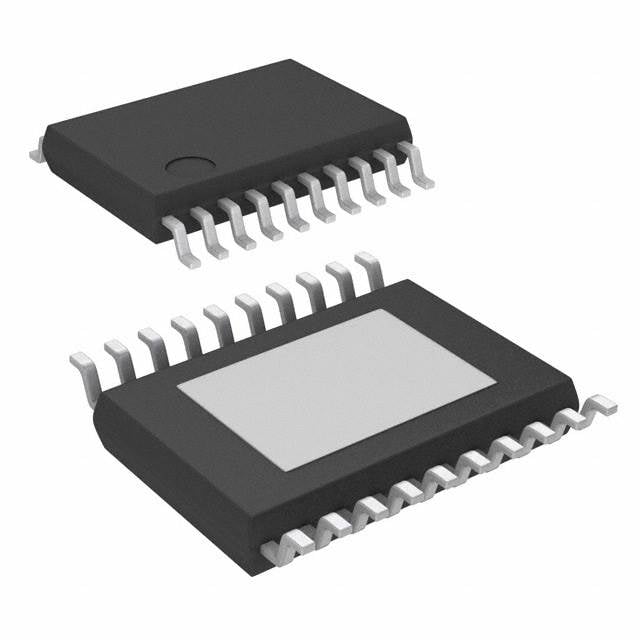

TPS70802PWPR TI Dual-Output LDO | 20-HTSSOP | 3.3V/1.8V, 1A/0.5A

Product Overview

The TPS70802PWPR from Texas Instruments is a dual-output low-dropout (LDO) voltage regulator designed for applications requiring two independent regulated voltages. Housed in a compact 20-HTSSOP package, it provides a fixed 3.3V output at 1A and a fixed 1.8V output at 0.5A, with high accuracy and low dropout voltage. This device integrates power-good (PG) outputs and enable pins for each regulator, making it ideal for powering mixed-signal systems, FPGAs, and microcontrollers in industrial and telecom equipment.

Detailed Technical Specifications

Key Features

• Dual independent LDO outputs with fixed voltages (3.3V and 1.8V)
• High output current: 1A and 0.5A
• Low dropout voltage: 350mV (3.3V) and 250mV (1.8V) at full load
• Low quiescent current: 170µA typical
• Integrated power-good (PG) outputs for each regulator
• Enable pins for independent on/off control
• Thermal shutdown and overcurrent protection
• Stable with ceramic output capacitors (≥2.2µF)
• PowerPAD package for enhanced thermal dissipation

Target Applications

• 5G base station power management (e.g., powering FPGA core and I/O)
• Automotive dashboard infotainment systems (e.g., processor and display power)
• Industrial PLC and motor control modules
• Medical imaging equipment (e.g., ultrasound system power)
• Networking switches and routers

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TPS70802PWPR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
