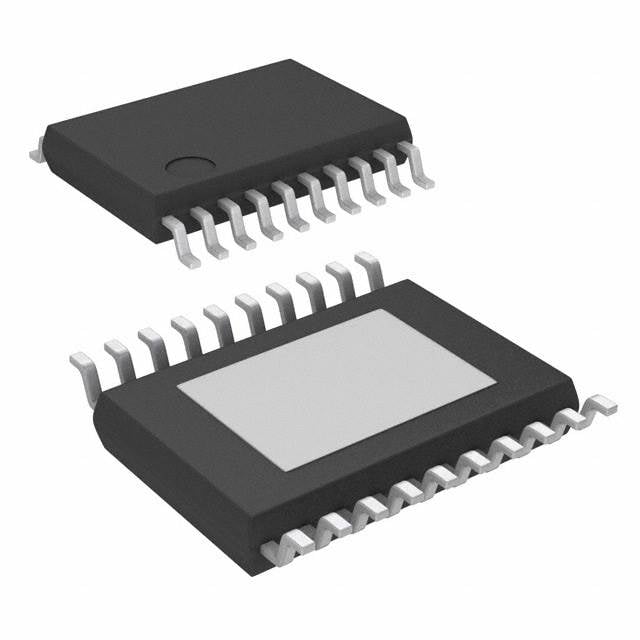

TPS77801PWPR TI LDO Regulator | 20-HTSSOP | 1A, Adjustable Output

Product Overview

The TPS77801PWPR from Texas Instruments is a high-performance, low-dropout (LDO) voltage regulator designed to deliver up to 1A of output current with a dropout voltage of typically 600mV at full load. It features an adjustable output voltage range from 1.2V to 5.5V, making it suitable for a wide variety of applications. The device is offered in a compact 20-pin HTSSOP package with PowerPAD for enhanced thermal performance. With excellent line and load regulation, low output noise, and fast transient response, the TPS77801PWPR is ideal for powering sensitive analog and digital circuits in industrial, automotive, and telecommunications systems.

Detailed Technical Specifications

Key Features

• Adjustable output voltage from 1.2V to 5.5V
• Low dropout voltage: 600mV at 1A
• High output current capability: 1A
• Low quiescent current: 85µA typical
• Excellent line and load regulation
• Low output noise: 30µVrms
• High PSRR: 60dB at 1kHz
• Fast transient response
• Built-in overcurrent and thermal protection
• PowerPAD package for improved thermal dissipation
• Enable pin for power sequencing

Target Applications

• 5G base station power management (e.g., powering RF transceivers)
• Automotive infotainment and dashboard systems (e.g., powering audio codecs, display drivers)
• Industrial control systems (e.g., PLC modules, sensor interfaces)
• Telecommunications equipment (e.g., routers, switches)
• Portable and battery-powered devices (e.g., medical monitors, handheld instruments)
