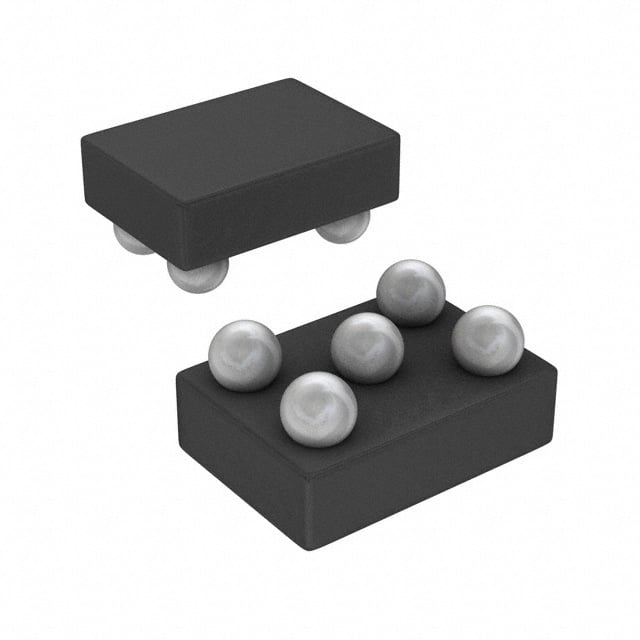

TPS79921YZUT TI LDO Regulator | 5-DSBGA | 200mA, 1.2V Output

Product Overview

The TPS79921YZUT from Texas Instruments is a high-performance, low-dropout (LDO) linear voltage regulator designed for space-constrained applications. Housed in a compact 5-pin DSBGA package (0.8mm x 0.8mm), it delivers up to 200mA of output current with a fixed output voltage of 1.2V. The device features ultra-low dropout voltage (typically 100mV at 200mA), high PSRR (65dB at 1kHz), and low quiescent current (40µA typical). It is optimized for noise-sensitive and battery-powered systems requiring minimal board space.

Detailed Technical Specifications

Key Features

• Ultra-small 5-DSBGA package (0.8mm x 0.8mm) for space-constrained designs
• Low dropout voltage: 100mV at 200mA load
• High PSRR: 65dB at 1kHz, ideal for RF and analog circuits
• Low output noise: 30µVrms, suitable for noise-sensitive applications
• Low quiescent current: 40µA, extending battery life
• Stable with ceramic output capacitors (1µF typical)
• Overcurrent and thermal protection

Target Applications

• 5G base stations: Powering RF transceivers and PLLs (e.g., TI's LMX2594)
• Automotive dashboard: Supply for infotainment processors (e.g., TI's DRA7xx)
• Portable medical devices: ECG monitors (e.g., TI's ADS1298)
• IoT modules: Bluetooth Low Energy (e.g., TI's CC2640R2F)
• Industrial sensors: Pressure transmitters (e.g., TI's PGA900)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TPS79921YZUT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TPS79921YZUT 是德州儀器（TI）推出的一款高性能低壓差線性穩壓器（LDO），專為空間受限的應用設計。採用緊湊的 5 引腳 DSBGA 封裝（0.8mm x 0.8mm），可提供高達 200mA 的輸出電流，固定輸出電壓為 1.2V。該器件具有超低壓差（典型值 100mV @ 200mA）、高電源抑制比（65dB @ 1kHz）和低靜態電流（典型值 40µA），適用於對噪聲敏感和電池供電的系統。

詳細技術參數

核心特性

• 超小型 5-DSBGA 封裝（0.8mm x 0.8mm），適用於空間受限設計
• 低壓差：200mA 負載下典型值 100mV
• 高電源抑制比：65dB @ 1kHz，適用於射頻和模擬電路
• 低輸出噪聲：30µVrms，適合噪聲敏感應用
• 低靜態電流：40µA，延長電池壽命
• 可使用陶瓷輸出電容器穩定工作（典型值 1µF）
• 過流和過熱保護

典型應用場景

• 5G 基站：為射頻收發器和鎖相環供電（如 TI 的 LMX2594）
• 汽車儀表板：為信息娛樂處理器供電（如 TI 的 DRA7xx）
• 便攜式醫療設備：心電圖監護儀（如 TI 的 ADS1298）
• 物聯網模塊：藍牙低能耗（如 TI 的 CC2640R2F）
• 工業傳感器：壓力變送器（如 TI 的 PGA900）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TPS79921YZUT 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
