TPS922053DRRR TI LED Driver | 12-WSON (3x3) | 40V, 1.5A, PWM Dimming

Product Overview

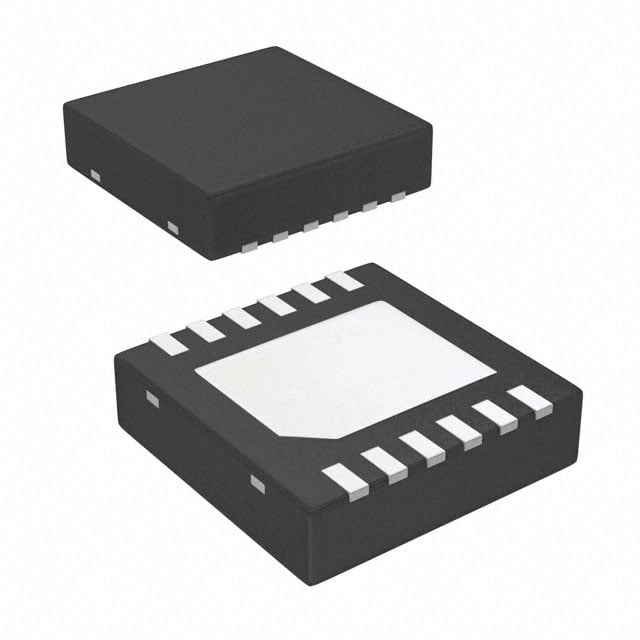

The TPS922053DRRR from Texas Instruments is a high-efficiency, synchronous boost LED driver designed for driving high-brightness LEDs. It operates from an input voltage range of 2.5V to 40V and can deliver up to 1.5A of LED current. The device features a 2.2MHz switching frequency, enabling small external components. Integrated PWM dimming with a 10,000:1 dimming ratio provides precise brightness control. The TPS922053DRRR is available in a compact 12-WSON (3x3 mm) package, making it ideal for space-constrained applications.

Detailed Technical Specifications

Key Features

• Wide input voltage range: 2.5V to 40V
• High output current: up to 1.5A
• High efficiency: up to 95%
• Integrated 40V, 0.2Ω power MOSFET
• PWM dimming with 10,000:1 ratio
• 2.2MHz switching frequency for small solution size
• Protection: OVP, OCP, OTP, UVLO
• 12-WSON (3x3 mm) package

Target Applications

• Automotive lighting: headlights, daytime running lights (DRL), taillights
• Industrial lighting: high-bay lights, street lights
• Consumer electronics: LCD backlighting, portable lighting
• 5G base station indicator lights
• Dashboard backlighting in vehicles

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TPS922053DRRR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
