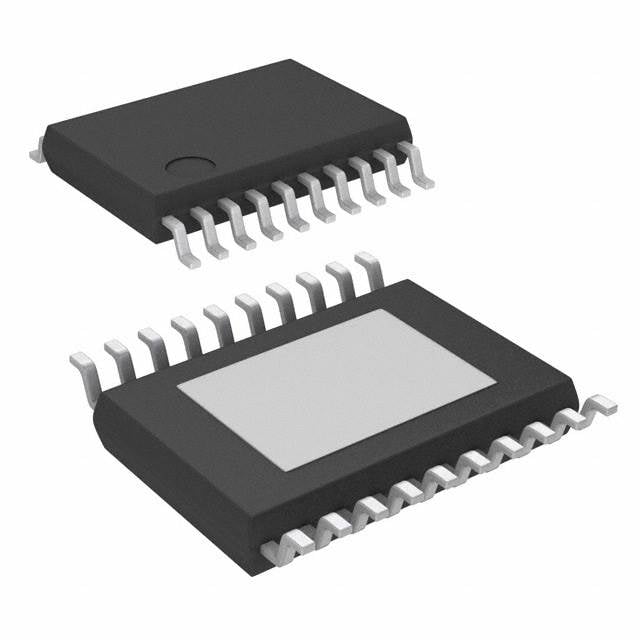

TPS92601QPWPRQ1 TI LED Driver | 20-HTSSOP | 40V, 1.5A

Product Overview

The TPS92601QPWPRQ1 is a high-performance, automotive-grade single-channel LED driver from Texas Instruments. It is designed to provide a constant current source for high-brightness LEDs in various automotive lighting applications. The device operates from an input voltage range of 4.5V to 40V and can deliver up to 1.5A of output current. Housed in a compact 20-pin HTSSOP package with PowerPAD, it offers excellent thermal performance. The TPS92601QPWPRQ1 integrates a current-sense resistor, PWM dimming control, and fault protection features, making it ideal for reliable and efficient LED lighting systems.

Detailed Technical Specifications

Key Features

• Wide input voltage range: 4.5V to 40V
• High output current capability: up to 1.5A
• Integrated current-sense resistor
• PWM dimming interface for brightness control
• High switching frequency up to 2.2MHz for small external components
• Comprehensive fault protection: LED open/short, overcurrent, overtemperature
• Automotive qualified (AEC-Q100)
• Thermally enhanced HTSSOP package

Target Applications

• Automotive exterior lighting: headlights, daytime running lights (DRL), turn signals, fog lights
• Automotive interior lighting: dashboard backlighting, ambient lighting, dome lights
• Commercial vehicle lighting: truck and bus lighting systems
• Industrial lighting: LED modules for signage and display backlighting
• Specific product examples: 5G base station indicator lights, automotive dashboard clusters, LED matrix headlamps

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TPS92601QPWPRQ1. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
