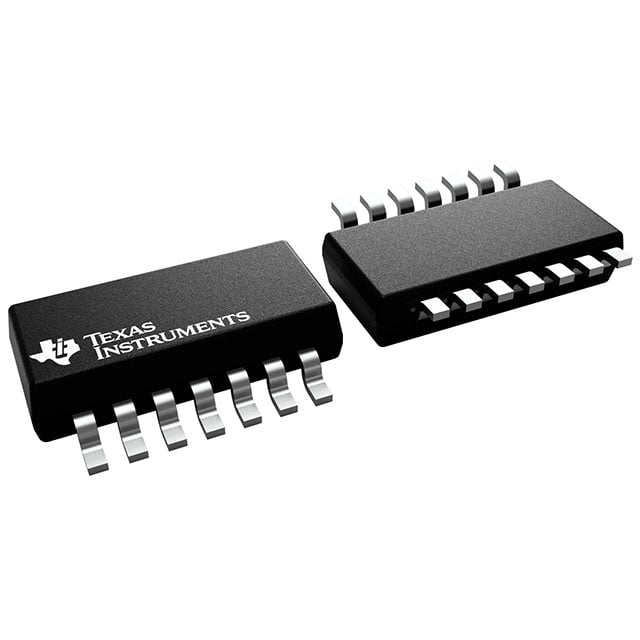

TPSF12C3DYYR TI ESD Protection Diode | 14-SOT-23-THIN | 12V, 0.3pF

Product Overview

The TPSF12C3DYYR from Texas Instruments is a high-performance ESD protection diode designed to safeguard sensitive electronics from electrostatic discharge (ESD) and other voltage transients. Housed in a compact 14-SOT-23-THIN package, this device offers ultra-low capacitance (0.3 pF typical) and low leakage current, making it ideal for high-speed data lines and RF applications. With a working voltage of 12 V and robust ESD rating of ±30 kV (contact) per IEC 61000-4-2, it provides reliable protection for modern electronic systems.

Detailed Technical Specifications

Key Features

• Ultra-low capacitance: 0.3 pF typical, ideal for high-speed interfaces (USB 3.0, HDMI, DisplayPort)
• Low leakage current: 0.1 µA max, preserving battery life in portable devices
• High ESD robustness: ±30 kV contact and air discharge per IEC 61000-4-2
• Wide operating voltage: 12 V working voltage, suitable for various power rails
• Compact package: 14-SOT-23-THIN saves board space
• RoHS compliant and lead-free

Target Applications

• 5G base station RF front-end protection
• Automotive dashboard display interfaces (LVDS, eDP)
• Industrial Ethernet (PROFINET, EtherCAT) port protection
• Consumer electronics: USB 3.0/3.1, HDMI 2.0, DisplayPort 1.4
• Medical devices: patient monitoring equipment data lines
• IoT gateways and smart home hubs

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TPSF12C3DYYR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
