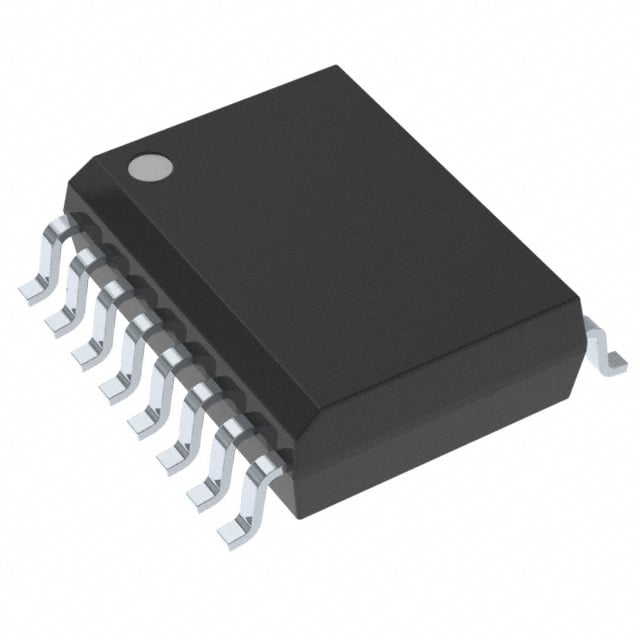

TS3L100DBQR TI Analog Switch IC | 16-SSOP | 4-Channel, 1:2 Mux/Demux

Product Overview

The TS3L100DBQR from Texas Instruments is a high-performance 4-channel, 1:2 multiplexer/demultiplexer analog switch designed for signal routing in high-speed data acquisition and communication systems. Housed in a compact 16-SSOP package, it offers low on-state resistance (5 Ω typical) and wide bandwidth (up to 300 MHz), making it ideal for switching analog or digital signals with minimal distortion. The device operates over a supply voltage range of 2.3 V to 3.6 V and features bidirectional signal flow, making it suitable for both analog and digital applications.

Detailed Technical Specifications

Key Features

• Low on-state resistance (5 Ω) for minimal signal attenuation
• Wide bandwidth (300 MHz) supports high-speed signals
• Fast switching speeds (tON = 5 ns, tOFF = 4 ns)
• Bidirectional signal routing
• Low power consumption (0.5 μA typical)
• Break-before-make switching prevents signal overlap
• ESD protection (2 kV HBM)

Target Applications

• 5G base station signal routing (e.g., antenna interface switching)
• Automotive dashboard display switching (e.g., video signal selection)
• Data acquisition systems (e.g., multiplexing sensor inputs)
• Audio/video signal routing in consumer electronics
• Test and measurement equipment (e.g., channel selection)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TS3L100DBQR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
