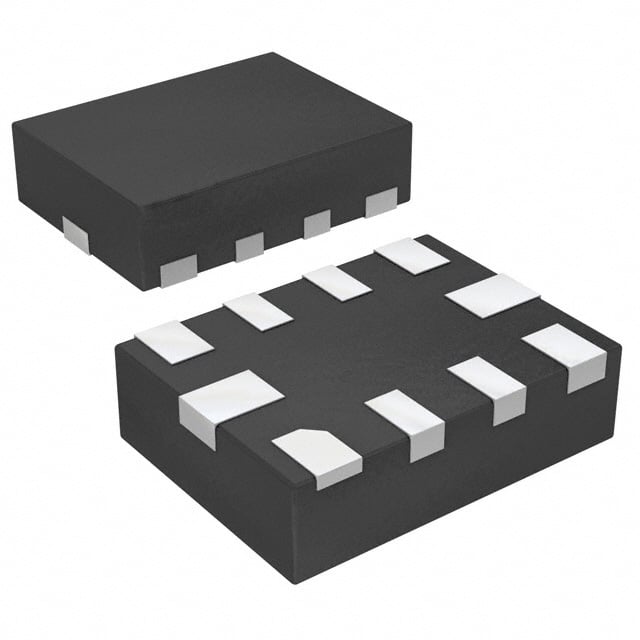

TS3USB221ERSER TI USB Switch | 10-UQFN (2.0x1.5) | 2:1 MUX, 3.3V, 6pF

Product Overview

The TS3USB221ERSER is a high-bandwidth USB 2.0 (480 Mbps) switch from Texas Instruments, designed for multiplexing/demultiplexing of differential signals. It features a single-pole double-throw (SPDT) configuration, enabling selection between two USB sources. The device operates from a 2.3V to 3.6V supply and offers low on-state capacitance (6 pF typical) and low on-resistance (6 Ω typical), ensuring minimal signal degradation. Housed in a compact 10-UQFN (2.0x1.5 mm) package, it is ideal for space-constrained applications.

Detailed Technical Specifications

Key Features

• High bandwidth: 720 MHz supports USB 2.0 high-speed (480 Mbps)
• Low on-state capacitance (6 pF) minimizes signal distortion
• Low on-resistance (6 Ω) ensures low insertion loss
• Wide supply voltage range: 2.3V to 3.6V
• ESD protection up to ±8 kV (HBM) on all pins
• Ultra-small 10-UQFN package saves board space
• Break-before-make switching prevents signal contention

Target Applications

• USB port sharing in laptops and tablets (e.g., Dell XPS 13)
• USB hub multiplexing in docking stations (e.g., Dell WD19)
• Signal routing in 5G base stations (e.g., Nokia AirScale)
• Automotive infotainment systems (e.g., Tesla Model 3 dashboard USB)
• Industrial cameras with USB interface (e.g., Basler ace series)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TS3USB221ERSER. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
