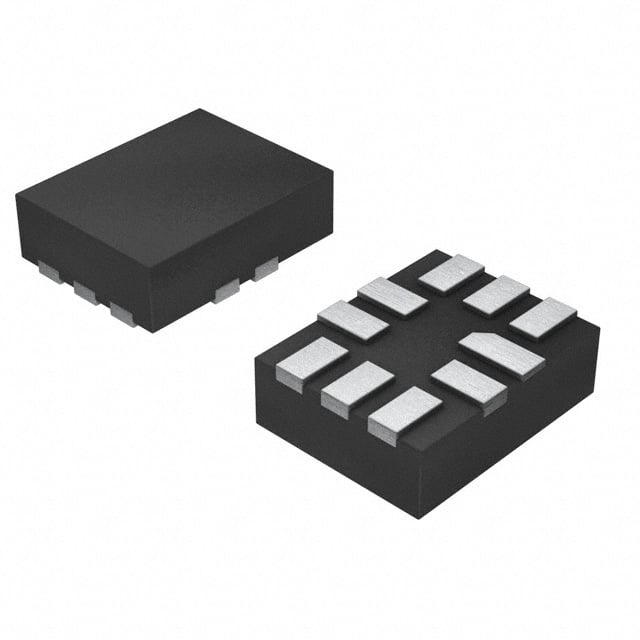

TS3USB30RSWR TI USB Switch | 10-UQFN (1.8X1.4) | 3.3V, 6Gbps, 1:2 MUX

Product Overview

The TS3USB30RSWR from Texas Instruments is a high-performance USB 2.0 analog switch designed for multiplexing/demultiplexing signals in portable and consumer electronics. It supports data rates up to 6 Gbps, making it suitable for USB 2.0 High-Speed (480 Mbps) and beyond. The device operates from a single 3.3V supply and features a 1:2 (SPDT) configuration, enabling signal routing between two USB ports or between USB and other interfaces. Packaged in a compact 10-UQFN (1.8x1.4 mm), it is ideal for space-constrained applications.

Detailed Technical Specifications

Key Features

• Wide bandwidth of 6 GHz supports high-speed data rates
• Low on-state resistance (6 Ω) minimizes signal attenuation
• Low capacitance (6 pF) ensures signal integrity
• Single 3.3V supply operation
• ESD protection up to ±8 kV contact and ±15 kV air discharge
• Ultra-low power consumption (1 μA max)
• Small footprint package (10-UQFN) for space-constrained designs
• Break-before-make switching prevents signal contention

Target Applications

• USB 2.0 signal switching in smartphones, tablets, and laptops
• Portable media players and digital cameras
• Docking stations and USB hubs
• 5G base stations for control signal routing
• Automotive infotainment systems and dashboards
• Industrial handheld terminals and data loggers

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TS3USB30RSWR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TS3USB30RSWR 是德州儀器（TI）推出的一款高性能 USB 2.0 模擬開關，專為可攜式及消費性電子產品中的訊號多工/解多工設計。支援高達 6 Gbps 的數據速率，適用於 USB 2.0 高速（480 Mbps）及更高規格。器件工作電壓為單一 3.3V，採用 1:2（SPDT）配置，可實現兩個 USB 埠之間或 USB 與其他介面之間的訊號路由。封裝為緊湊的 10-UQFN（1.8x1.4 mm），適合空間受限的應用。

詳細技術參數

核心特性

• 6 GHz 寬頻寬，支援高速數據傳輸
• 低導通電阻（6 Ω），減少訊號衰減
• 低電容（6 pF），確保訊號完整性
• 單一 3.3V 電源供電
• ESD 保護高達 ±8 kV（接觸）和 ±15 kV（空氣）
• 超低功耗（最大 1 μA）
• 小型封裝（10-UQFN），適合空間受限設計
• 先斷後合切換，防止訊號衝突

典型應用場景

• 智慧型手機、平板電腦和筆記型電腦中的 USB 2.0 訊號切換
• 可攜式媒體播放器和數位相機
• 擴充基座和 USB 集線器
• 5G 基地台中的控制訊號路由
• 汽車資訊娛樂系統和儀表板
• 工業手持終端和數據記錄器

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TS3USB30RSWR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
