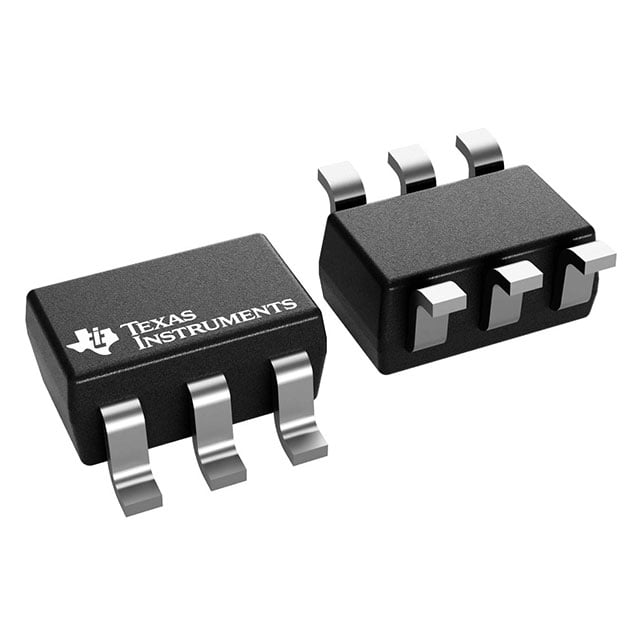

TS5A3159DCKR TI Analog Switch | SC-70-6 | 1Ω Ron, 5V Supply

Product Overview

The TS5A3159DCKR from Texas Instruments is a high-performance single-pole double-throw (SPDT) analog switch designed for general-purpose switching applications. It operates from a single 1.65V to 5.5V supply, making it suitable for battery-powered and low-voltage systems. The device features low on-state resistance (1Ω typical) and excellent channel-to-channel matching, ensuring minimal signal distortion. Housed in a compact SC-70-6 package, it is ideal for space-constrained designs.

Detailed Technical Specifications

Key Features

• Low on-state resistance (1Ω) minimizes signal loss
• Wide supply voltage range (1.65V to 5.5V) supports various systems
• High bandwidth (100 MHz) for analog and digital signals
• Fast switching speeds (20 ns) for high-speed applications
• Low power consumption (0.5 μW typical)
• Break-before-make switching prevents signal contention
• ESD protection up to 2 kV HBM

Target Applications

• 5G base station: Signal routing in RF front-end modules
• Automotive dashboard: Audio source selection and sensor signal multiplexing
• Portable devices: Audio jack detection and battery monitoring
• Industrial control: Analog signal switching in PLCs
• Medical equipment: ECG signal routing
