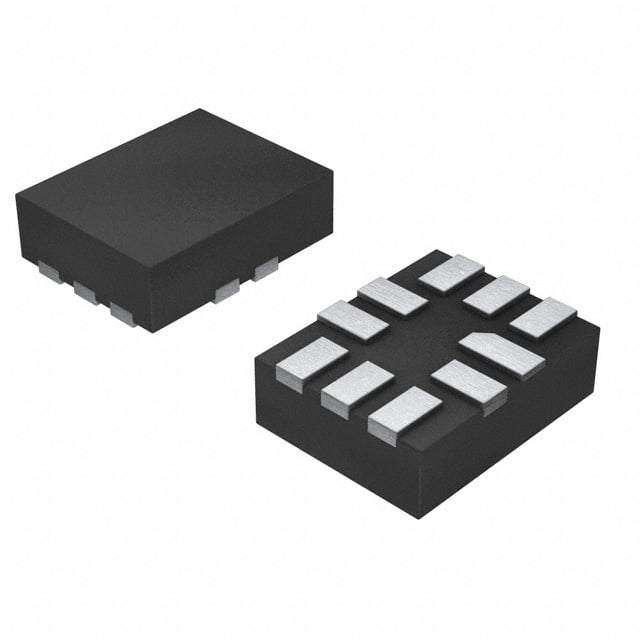

TS5USBA224RSWR TI USB Switch | 10-UQFN (1.8X1.4) | 2:1 MUX, 6.5GHz BW

Product Overview

The TS5USBA224RSWR is a high-performance USB 2.0 analog switch from Texas Instruments, designed for multiplexing USB signals in portable and consumer electronics. It features a 2:1 configuration, supporting data rates up to 480 Mbps and offering a wide bandwidth of 6.5 GHz for excellent signal integrity. The device operates over a supply voltage range of 2.7V to 5.5V and is housed in a compact 10-UQFN (1.8x1.4 mm) package, making it ideal for space-constrained applications.

Detailed Technical Specifications

Key Features

• High bandwidth of 6.5 GHz for minimal signal degradation
• Low on-state resistance (6 Ω) for reduced power loss
• Wide supply voltage range (2.7V to 5.5V) for design flexibility
• ESD protection up to 8 kV (HBM)
• Break-before-make switching to prevent signal contention
• Ultra-small package (10-UQFN) for space-constrained designs

Target Applications

• USB 2.0 signal switching in smartphones and tablets (e.g., Samsung Galaxy S23)
• Data multiplexing in 5G base stations (e.g., Nokia AirScale)
• Audio/video switching in automotive infotainment systems (e.g., Tesla Model 3 dashboard)
• Portable medical devices (e.g., Abbott FreeStyle Libre)
• Consumer electronics like digital cameras and gaming consoles

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TS5USBA224RSWR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
