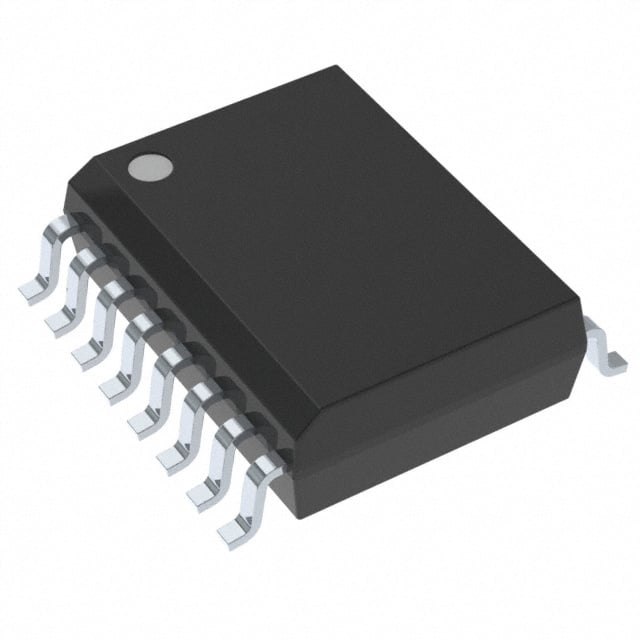

TS5V330DBQR TI Video Switch | 16-SSOP | 4-Ch SPDT, 400MHz Bandwidth

Product Overview

The TS5V330DBQR from Texas Instruments is a high-performance 4-channel single-pole double-throw (SPDT) analog switch designed for video and signal routing applications. Housed in a compact 16-pin SSOP package, this device offers wide bandwidth (400 MHz), low on-state resistance (10 Ω typical), and excellent channel-to-channel crosstalk isolation (-72 dB at 10 MHz). It operates over a supply voltage range of 4.5 V to 5.5 V and features TTL-compatible control logic. The TS5V330DBQR is ideal for switching composite video, S-video, and RGB signals in consumer electronics, automotive infotainment, and industrial display systems.

Detailed Technical Specifications

Key Features

• Wide bandwidth: 400 MHz for high-speed video signals
• Low on-state resistance: 10 Ω minimizes signal attenuation
• Excellent crosstalk and off-isolation: -72 dB at 10 MHz
• Low power consumption: 1 μA maximum quiescent current
• TTL-compatible control inputs simplify interface with logic
• Break-before-make switching prevents signal overlap
• ESD protection: 2 kV HBM

Target Applications

• Video signal routing in 5G base station monitoring systems
• Automotive dashboard displays and infotainment systems
• Consumer electronics: DVD players, set-top boxes, gaming consoles
• Industrial video surveillance and security cameras
• Medical imaging equipment (e.g., ultrasound monitors)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TS5V330DBQR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TS5V330DBQR 是德州儀器（TI）推出的一款高性能 4 通道單刀雙擲（SPDT）模擬開關，專為視頻和信號路由應用設計。該器件採用緊湊的 16 引腳 SSOP 封裝，提供 400 MHz 的寬帶寬、10 Ω（典型值）的低導通電阻以及出色的通道間串擾隔離（10 MHz 時為 -72 dB）。它支持 4.5 V 至 5.5 V 的電源電壓範圍，並具有 TTL 兼容的控制邏輯。TS5V330DBQR 非常適合在消費電子、汽車信息娛樂和工業顯示系統中切換複合視頻、S-Video 和 RGB 信號。

詳細技術參數

核心特性

• 寬帶寬：400 MHz，支持高速視頻信號
• 低導通電阻：10 Ω，最小化信號衰減
• 出色的串擾和關斷隔離：10 MHz 時為 -72 dB
• 低功耗：靜態電流最大 1 μA
• TTL 兼容控制輸入，簡化邏輯接口
• 先斷後合切換，防止信號重疊
• ESD 保護：2 kV HBM

典型應用場景

• 5G 基站監控系統中的視頻信號路由
• 汽車儀表盤顯示和信息娛樂系統
• 消費電子：DVD 播放器、機頂盒、遊戲主機
• 工業視頻監控和安全攝像頭
• 醫療成像設備（例如超聲監視器）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TS5V330DBQR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
