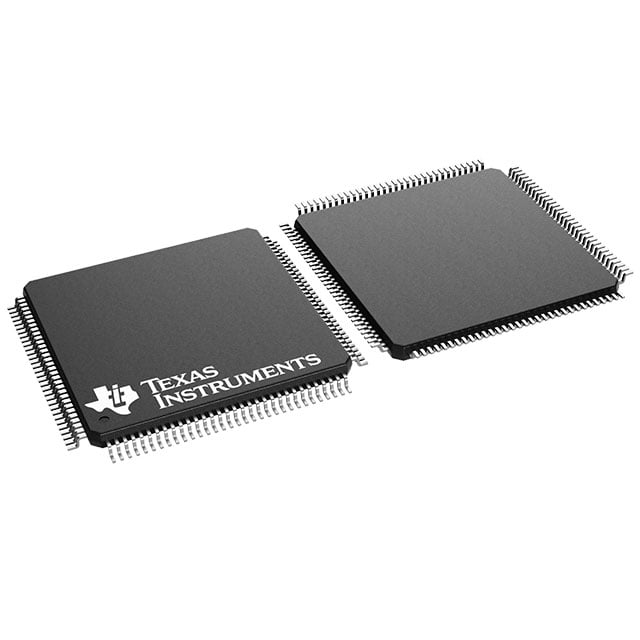

TSB43AB21AIPDTEP TI IEEE 1394a-2000 Controller | 128-TQFP (14x14) | 400 Mbps, 3.3V

Product Overview

The TSB43AB21AIPDTEP is a high-performance IEEE 1394a-2000 (FireWire) physical layer (PHY) and link layer controller from Texas Instruments. It integrates a 400 Mbps PHY and a link-layer controller in a single 128-pin TQFP package (14x14 mm). Designed for enhanced reliability, this device supports both asynchronous and isochronous data transfers, making it ideal for demanding applications such as industrial automation, aerospace, and defense systems. The TSB43AB21AIPDTEP operates at 3.3V and is fully compliant with the IEEE 1394a-2000 standard, offering backward compatibility with 1394-1995.

Detailed Technical Specifications

Key Features

• Integrated 400 Mbps PHY and link-layer controller
• Three fully compliant 1394a-2000 ports
• Supports asynchronous and isochronous data transfers
• Low power consumption with 3.3V operation
• Enhanced ESD protection for industrial environments
• Compatible with PCI and CardBus interfaces
• Available in extended temperature range

Target Applications

• Industrial automation and control systems (e.g., PLCs, robotic controllers)
• Aerospace and defense data buses (e.g., avionics, mission computers)
• Medical imaging equipment (e.g., ultrasound, endoscopy)
• 5G base station backhaul and control links
• Automotive infotainment and driver assistance systems (e.g., dashboard cameras, ADAS)
• High-speed data acquisition and test equipment

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TSB43AB21AIPDTEP. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TSB43AB21AIPDTEP 是德州儀器（TI）推出的一款高性能 IEEE 1394a-2000（FireWire）物理層（PHY）和鏈路層控制器。它將 400 Mbps PHY 和鏈路層控制器集成在一個 128 引腳 TQFP 封裝（14x14 mm）中。該器件專為增強可靠性而設計，支持異步和等時數據傳輸，非常適合工業自動化、航空航天和國防系統等要求苛刻的應用。TSB43AB21AIPDTEP 在 3.3V 電壓下工作，完全符合 IEEE 1394a-2000 標準，並向後兼容 1394-1995。

詳細技術參數

核心特性

• 集成 400 Mbps PHY 和鏈路層控制器
• 三個完全符合 1394a-2000 標準的端口
• 支持異步和等時數據傳輸
• 3.3V 工作電壓，低功耗
• 增強型 ESD 保護，適用於工業環境
• 兼容 PCI 和 CardBus 接口
• 提供擴展溫度範圍版本

典型應用場景

• 工業自動化與控制系統（如 PLC、機器人控制器）
• 航空航天與國防數據總線（如航空電子、任務計算機）
• 醫療成像設備（如超聲、內窺鏡）
• 5G 基站回傳與控制鏈路
• 汽車信息娛樂與駕駛輔助系統（如儀表盤攝像頭、ADAS）
• 高速數據採集與測試設備

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TSB43AB21AIPDTEP 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
