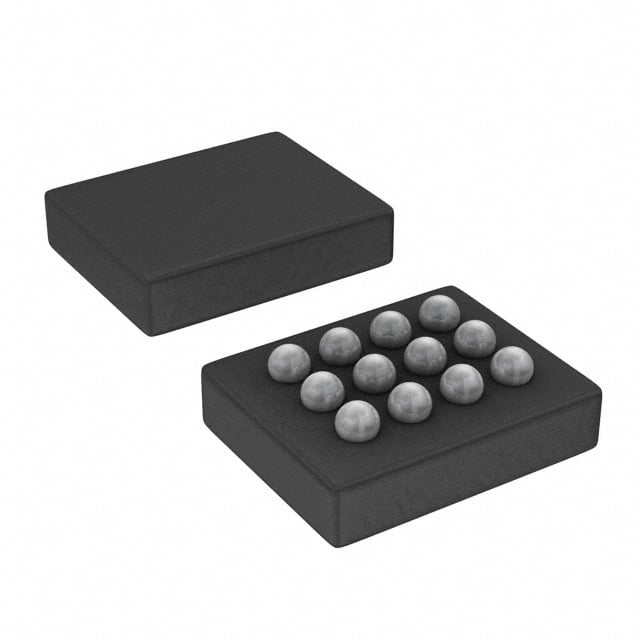

TSC2014IYZGR TI Analog Front End | 12-DSBGA | 4-Ch, 12-bit ADC, I2C/SMBus

Product Overview

The TSC2014IYZGR from Texas Instruments is a low-power, 4-channel, 12-bit analog-to-digital converter (ADC) with an integrated I2C/SMBus interface. Housed in a compact 12-DSBGA package, it is designed for precise voltage and current monitoring in space-constrained applications. The device operates from a single 2.7V to 5.5V supply and features a programmable conversion rate up to 860 SPS. Its small footprint and low power consumption make it ideal for portable and battery-powered systems.

Detailed Technical Specifications

Key Features

• 4-channel single-ended input with multiplexer
• 12-bit SAR ADC with no missing codes
• I2C-compatible interface (up to 3.4 MHz)
• Programmable conversion rate and power-down modes
• Internal reference and oscillator
• Low power: 0.5 mW at 860 SPS
• Wide supply range: 2.7V to 5.5V
• Extended temperature range: -40°C to +125°C
• Ultra-small 12-DSBGA package

Target Applications

• 5G base station power monitoring
• Automotive dashboard sensor interface
• Portable medical devices (e.g., glucose meters)
• Industrial process control (e.g., PLC analog input)
• Battery management systems in IoT devices

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TSC2014IYZGR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TSC2014IYZGR 是德州儀器推出的一款低功耗、4通道、12位模數轉換器（ADC），集成 I2C/SMBus 接口。採用緊湊的 12-DSBGA 封裝，專為空間受限的應用中的精確電壓和電流監測而設計。器件可在 2.7V 至 5.5V 的單電源下工作，並具有高達 860 SPS 的可編程轉換速率。其小尺寸和低功耗使其非常適合便攜式和電池供電系統。

詳細技術參數

核心特性

• 4通道單端輸入，帶多路復用器
• 12位 SAR ADC，無丟碼
• I2C 兼容接口（最高 3.4 MHz）
• 可編程轉換速率和掉電模式
• 內部基準和振盪器
• 低功耗：860 SPS 時僅 0.5 mW
• 寬電源範圍：2.7V 至 5.5V
• 擴展溫度範圍：-40°C 至 +125°C
• 超小型 12-DSBGA 封裝

典型應用場景

• 5G 基站電源監控
• 汽車儀表板傳感器接口
• 便攜式醫療設備（如血糖儀）
• 工業過程控制（如 PLC 模擬輸入）
• 物聯網設備中的電池管理系統

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TSC2014IYZGR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
